1603640
Official DistributorSKU
PHX1603640
MPN
RC-63P1N320000
Weight
0.007 kg
This product is Not Cancellable/Not Returnable

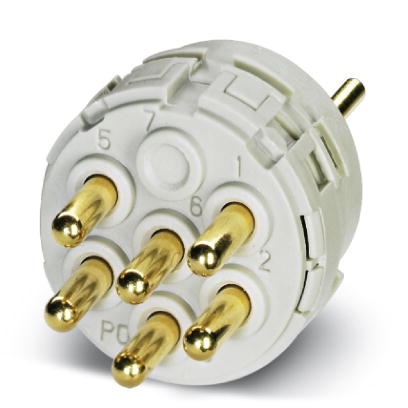

RC-63P1N320000 - Contact insert
Contact insert, number of positions: 6+3, contact connection type: Pin, Solder-in connection, series: RC, TU
Documents
Technical Specifications
Product properties
| Series | RC |
| Series | TU |
| Application | Signal |
| Number of Positions | 9 |
| Connection profile | 6+3 |
| Coding | N |
Contact
| Contact diameter | 2 mm |
| Max. current | 20 A |
| Nominal voltage UN | 150 V |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Nominal voltage UN | 150 V |
| Overvoltage category | II |
| Degree of pollution | 3 |
Connection data
| Connection Method | Solder-in connection |
Material specifications
| Insulator Material | PBT |
| Contact Material | CuZn |
| Contact surface | Nickel-plated, gold coating |
Connector
| Direction of rotation | Standard |
Mechanical data
| Insertion/withdrawal cycles | 50 |
Why Proax for Phoenix Contact 1603640?
Proax is an authorized distributor of Phoenix Contact 1603640 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 30 |
