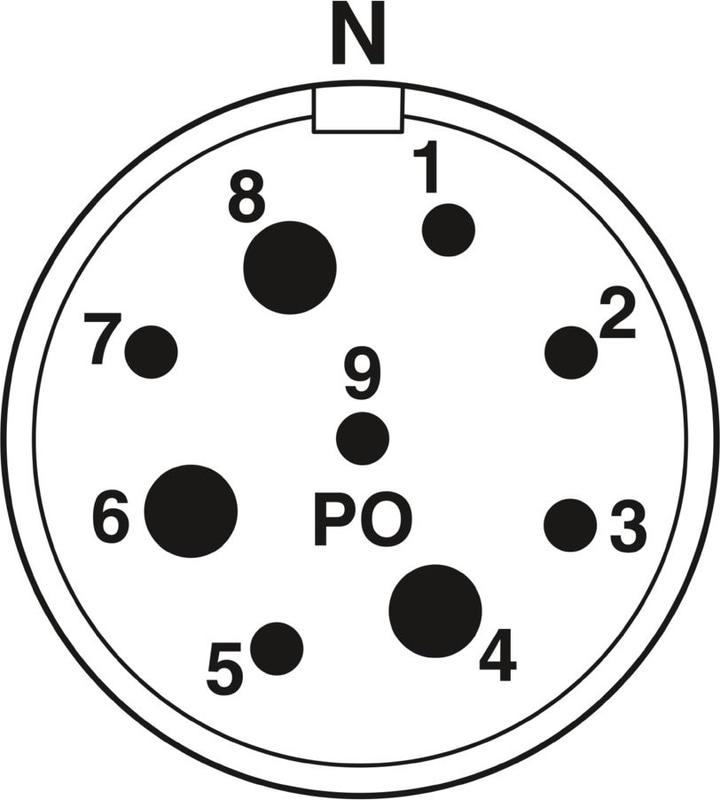

Connector pin assignment
1603604
Official DistributorSKU
PHX1603604
MPN
RC-63P1N12A600
Weight
0.071 kg
This product is Not Cancellable/Not Returnable
RC-63P1N12A600 - Crimp contact
Crimp contact, No. of pos.: 6+3, Direction of rotation: Standard, contact connection type: Pin, Solder cup, coding: N
Technical Specifications
Insulating body
| Coding | N |
| Insertion/withdrawal cycles | 50 |
| Connection Method | Solder cup |
| Contact switching type | Pin |
| Application | Signal |
| Number of Positions | 9 |
| Direction of rotation | Standard |
| Connection profile | 6+3 |
| Contact diameter Power contacts | 2 mm |
| Litz wire cross-section Power contacts min. | 0.08 mm² |
| Litz wire cross-section Power contacts max. | 2.5 mm² |
Insulating body
| Rated current Power contacts | 20 A |
| Rated voltage | 48 V AC |
| Rated voltage | 74 V DC |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameter Signal contacts | 1 mm |
| Litz wire cross-section Signal contacts min. | 0.08 mm² |
| Litz wire cross-section Signal contacts max. | 1 mm² |
| Nominal current per signal contact | 8 A |
