1572443
Official DistributorSKU
PHX1572443
MPN
SAC-4P-M 8Y/2XM 8FS VP
Weight
0.011 kg
Series SAC-4P

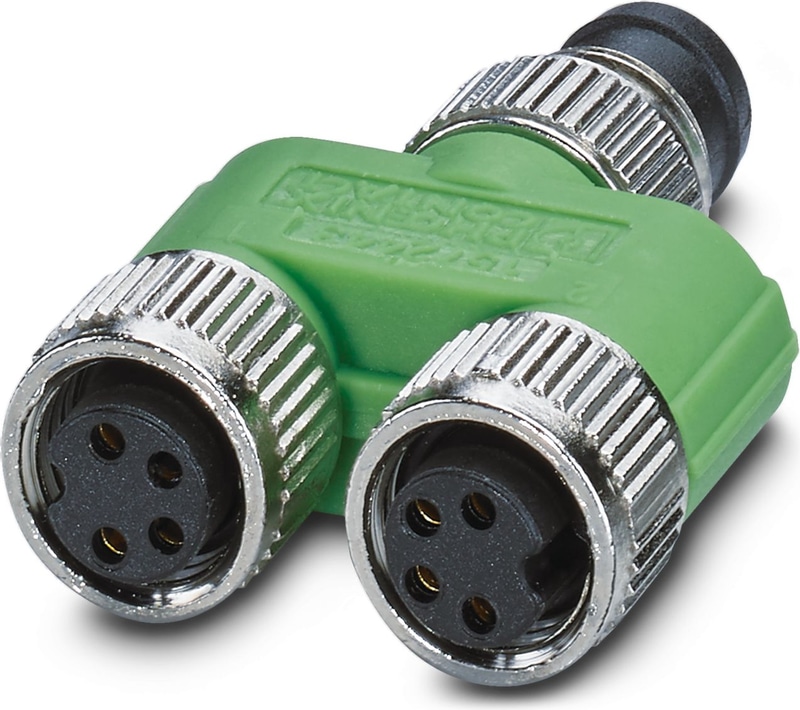

SAC-4P-M 8Y/2XM 8FS VP - Y distributor
Y distributor, 4-position, Plug straight M8, coding: A, on Socket straight M8, coding: A and Socket straight M8, coding: A, Parallel distributor
SAC-4P
The Phoenix Contact SAC-4P Series comprises 4-position sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These cables are engineered to provide secure and efficient connections between sensors, actuators, and control systems.
Key Features:
Connector Types: The SAC-4P Series offers cables with M12 connectors in both straight and angled configurations, providing flexibility for various installation scenarios.
Cable Materials: Cables are available with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Shielding Options: Some models feature advanced shielding technology to protect against electromagnetic interference, ensuring signal integrity in environments with high electrical noise.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Number of Positions | 4 |
| No. of cable outlets | 2 |
| Shielded | no |
| Coding | A |
| Thread type | M8 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Electrical properties
| Insulation resistance | ≥ 10 GΩ |
| Nominal voltage UN | 30 V AC |
| Nominal voltage UN | 30 V DC |
| Nominal current IN | 4 A |
Signaling
| Status display | No |
| Status display present | No |
Dimensions
| Width | 22 mm |
| Height | 10 mm |
| Length | 33.7 mm |
| Center distance | 12 mm |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
Connection 1
| Type | Plug straight M8 |
| Coding type | A |
Connection 2
| Type | Socket straight M8 |
| Coding type | A |
Connection 3
| Type | Socket straight M8 |
| Coding type | A |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
Standards and Regulations
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
Accessories
Why Proax for Phoenix Contact 1572443?
Proax is an authorized distributor of Phoenix Contact 1572443 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
