SAC-4P-M 8MR/20,0-950/M 8FR
Weight
0.861 kg
This product is Not Cancellable/Not Returnable
Series SAC-4P
SAC-4P-M 8MR/20,0-950/M 8FR - Bus system cable

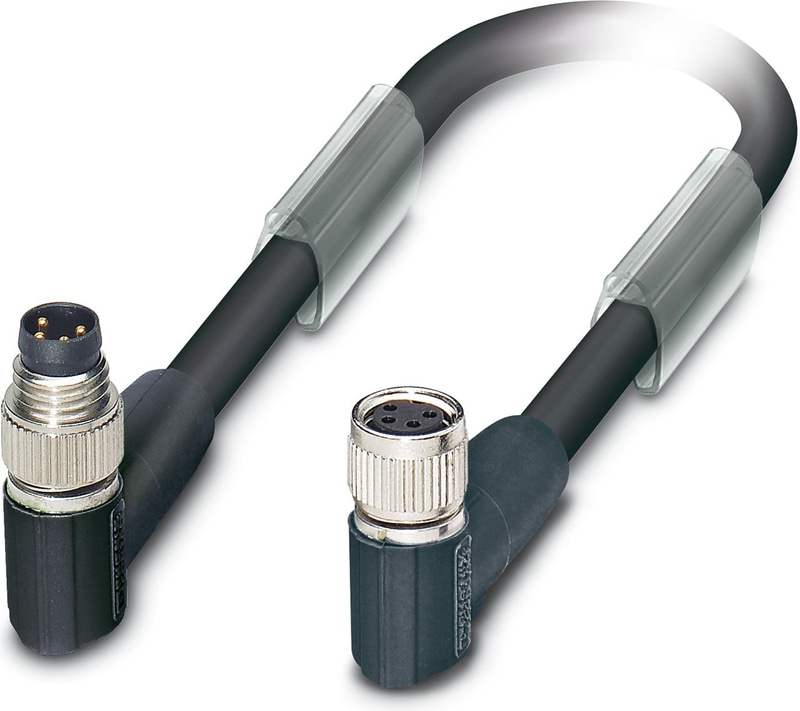

Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded (Tinned copper braided shield), Plug angled M8, coding: A, on Socket angled M8, cable length: 20 m
- Power cable for actuator voltage
- System cable for supply voltage and bus signal
SAC-4P
The Phoenix Contact SAC-4P Series comprises 4-position sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These cables are engineered to provide secure and efficient connections between sensors, actuators, and control systems.
Key Features:
Connector Types: The SAC-4P Series offers cables with M12 connectors in both straight and angled configurations, providing flexibility for various installation scenarios.
Cable Materials: Cables are available with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Shielding Options: Some models feature advanced shielding technology to protect against electromagnetic interference, ensuring signal integrity in environments with high electrical noise.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Application | Standard |
| Sensor Type | INTERBUS |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | A |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Interfaces
| Bus system | INTERBUS |
| Signal type/category | INTERBUS |
Signaling
| Status display | No |
| Status display present | No |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A |
| Test voltage | 800 V |
| Transmission medium | Copper |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Outer sheath, material | PUR |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (Plug) | RD (0.34 mm²) | 1 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 3 (Plug) | BU (0.34 mm²) | 3 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 2 (Plug) | YE (0.14 mm²) | 2 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 4 (Plug) | GN (0.14 mm²) | 4 (Socket) |
Connection 1
| Type | Plug angled M8 |
| Number of Positions | 4 |
| Coding type | A (Standard) |
Connection 2
| Type | Socket angled M8 |
| Number of Positions | 4 |
Cable/line
| Cable Length | 20 m |
INTERBUS [950]
| Cable weight | 41 kg/km |
| UL AWM style | 20963 (80°C/30 V) |
| Number of Positions | 4 |
| Shielded | yes |
| Cable Type | INTERBUS [950] |
| Conductor structure | 2xAWG26/19+2xAWG22/19 |
| Conductor structure signal line | 19x 0.10 mm |
| AWG Signal Line | 26 |
| Conductor Cross Section | 2x 0.14 mm² (Signal line) |
| Conductor Cross Section | 2x 0.34 mm² (Power supply) |
| Conductor Cross Section | 1x 0.38 mm² (Drain wire) |
| Wire diameter incl. insulation | 0.97 mm (Signal line) |
| Wire diameter incl. insulation | 1.25 mm (Power supply) |
| External Cable Diameter | 5.20 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | black RAL 9005 |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PP |
| Single wire, color | red-blue, green-yellow |
| Thickness, insulation | 0.24 mm (Conductor insulation, signal line) |
| Thickness, insulation | 0.25 mm (Conductor insulation, voltage supply) |
| Thickness, outer sheath | approx. 0.75 mm |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | 2 pairs around a drain wire in the center to the core |
| Optical shield covering | 85 % |
| Max. conductor resistance | ≤ 150 Ω/km (Signal line) |
| Max. conductor resistance | ≤ 58 Ω/km (Power supply) |
| Insulation resistance | ≥ 20 MΩ*km |
| Wave impedance | 75 Ω ±10 Ω (Signal line) |
| Wave impedance | 55 Ω ±10 Ω (Power supply) |
| Nominal voltage, cable | ≤ 100 V |
| Test voltage Core/Core | 1000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 1000.00 V (50 Hz, 1 min.) |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 7.5 x D |
| Smallest bending radius, fixed installation | 26 mm |
| Smallest bending radius, movable installation | 39 mm |
| Max. bending cycles | 1000000 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
