1557578
Official DistributorSKU
PHX1557578
MPN
SACC-DSIV-MS-8CON-L180-THR SH
Weight
0.011 kg
Series SACC-DSIV-MS

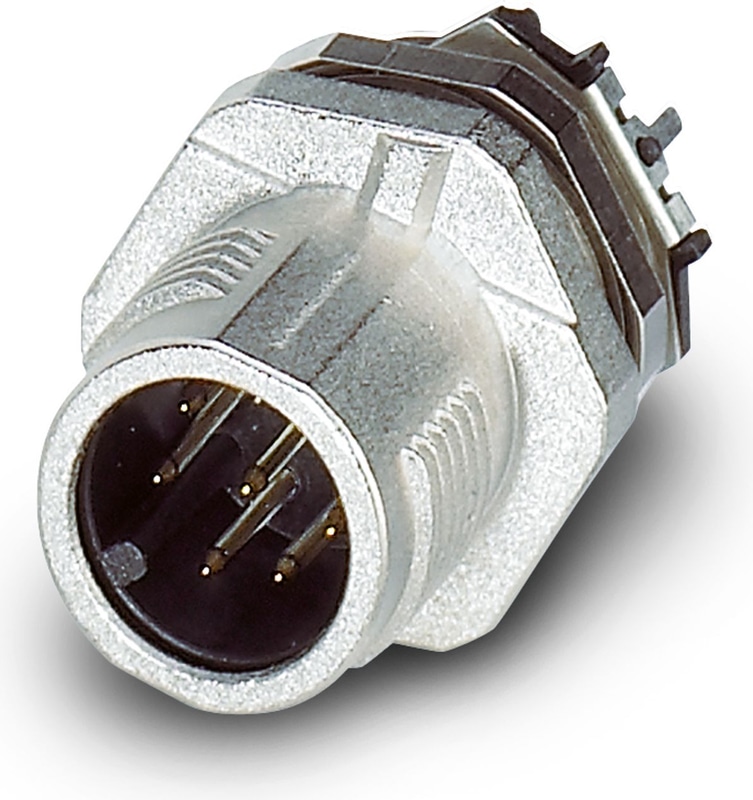

SACC-DSIV-MS-8CON-L180-THR SH - Device connector rear mounting
Device connector rear mounting, 8-position, Pin, straight, M12-SPEEDCON, coding: A, Rear mounting, M12 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240055
Documents
Technical Specifications
Notes
| Order information: | Lock nut is included in the scope of delivery |
Mounting
| Mounting Type | Rear mounting M12 x 1 With flat nut |
| Assembly note | With flat nut |
Product properties
| Number of Positions | 8 |
| Shielded | yes |
| Coding | A |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM / EPDM |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal current IN | 2 A |
Conductor connection
| Connection Method | THR solder connection |
| Contact connection type | Pin |
Connection 1
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Head locking type | SPEEDCON |
| Coding | A |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
Why Proax for Phoenix Contact 1557578?
Proax is an authorized distributor of Phoenix Contact 1557578 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 60 |
