Name: 1439971
Brand: Phoenix Contact
SKU: PHX1439971

Official Distributor

By Phoenix Contact

SKU

MPN

SACC-DSIV-MS-4CON-L180 SCO THR

Weight

0.008 kg

This product is Not Cancellable/Not Returnable

Series SACC-DSIV-MS

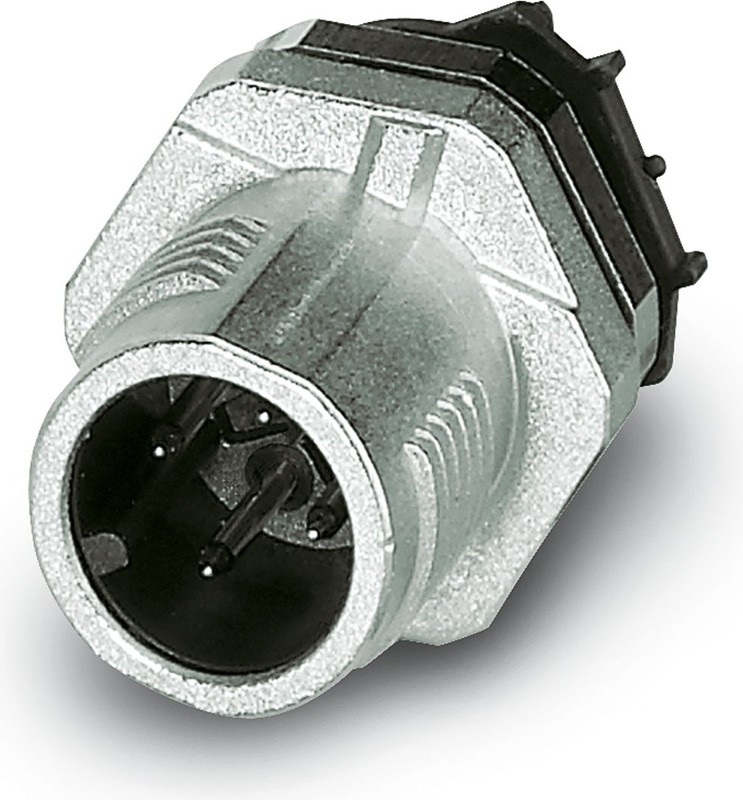

SACC-DSIV-MS-4CON-L180 SCO THR - Device connector rear mounting

Sensor/actuator flush-type connector, connector, 4-pos., M12 SPEEDCON, A-coded, rear/screw mounting with M12 thread, with straight THR solder connection

Mounting

Mounting Type	Rear mounting M12 x 1 With flat nut
Assembly instructions	With flat nut

Product properties

Number of Positions	4
Shielded	no
Coding	A

Insulation characteristics

Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	HB
Seal material	FKM / EPDM
Contact surface material	Au
Contact carrier material	PPA

Electrical properties

Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	250 V
Nominal current I_N	4 A

Conductor connection

Connection Method

THR solder connection

Connection 1

Head design	Plug
Head cable outlet	straight
Head thread type	M12
Head locking type	SPEEDCON
Coding	A

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP67
Ambient Temperature (Operation)	-25 °C ... 85 °C (Plug / socket)
