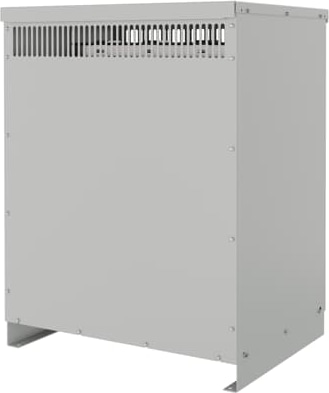

9T83B2676G03
Official DistributorBy ABB
SKU
ABB9T83B2676G03
MPN
1TQX154722F0600
Weight
616.896 kg
This item is ineligible for free shipping due to its size/weight.
ABB Low-Voltage General Purpose Dry-Type transformers are built to last more than 20 years and are UL Listed. Our Type QL & QF transformers meet DOE 2016 efficiency standards and are UL Energy Verified as energy efficient. They are available with aluminum or copper windings and in all three temperature rise ratings. Quiet Performance-Core and coil assemblies are mounted on rubber isolation pads to reduce noise-Single-piece front/back is easily removable for installation and service. Qualified to the seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022.
Technical Specifications
Technical
| Primary Rated Impulse Withstand Voltage | 10 kV |
| Apparent Power Output | 167 kV·A |
| Connection configuration | Single Phase Primary |
| Connection configuration | Single Phase 2-wire Secondary |
| Number of phases | 1-phase |
| Insulation Class | 220 °C, Class R |
| Accessory Type | Rain Shield kit, Lug Kit |
| Enclosure Type NEMA | Type2 |
| Transformer Type | Electrostatic Shield |
| Material of Conductor | Aluminum |
| Accessories Available | Yes |
| Product Frame Size | YF176 |
| Temperature Rise | 150 °C |
Electrical
| Current Type | AC |
| Primary Voltage | 240X480 V AC |
| Secondary Voltage | 120X240 V AC |
| Frequency (f) | 60 Hz |
Design
| Housing Material | Painted Steel |
| Color | ANSI 61 Grey |
Dimensions
| Product Net Width | 38.5 in |
| Product Net Width | 977.9 mm |
| Product Net Height | 45.5 in |
| Product Net Height | 1155.7 mm |
| Product Net Depth / Length | 33 in |
| Product Net Depth / Length | 838.2 mm |
| Product Net Weight | 1360 lb |
| Product Net Weight | 616.9 kg |
| Dimension Diagram | 303B932AAP076 |
Installation
| Instructions and Manuals | 9AKK107991A2143 |
