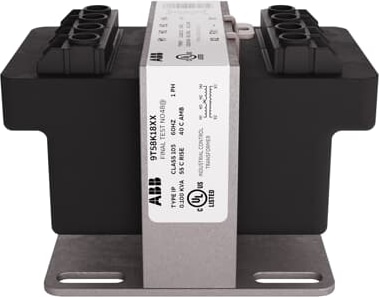

9T58K4240
Official DistributorBy ABB
SKU
ABB9T58K4240
MPN
1TQY319562L2630
Weight
7.938 kg
ABB's General purpose encapsulated open core, and coil transformers (also known as Type IP Control Power transformers) are ideally suited for industrial or light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers. The Type IP transformers are UL and cUL listed.
Technical Specifications
Technical
| Primary Rated Impulse Withstand Voltage | 10 kV |
| Apparent Power Output | 1 kV·A |
| Connection configuration | Single Phase Primary |
| Connection configuration | Single Phase Secondary |
| Number of phases | 1-phase |
| Insulation Class | 180 °C, Class H |
| Accessory Type | Terminal Covers, Fuse Block Kits |
| Enclosure Type NEMA | Open Type |
| Transformer Type | Control Power |
| Material of Conductor | Copper |
| Accessories Available | Yes |
| Product Frame Size | 12300 |
| Temperature Rise | 115 °C |
Electrical
| Current Type | AC |
| Primary Voltage | 230X460 V AC |
| Secondary Voltage | 115/230 V AC |
| Frequency (f) | 60 Hz |
Design
| Housing Material | Painted Steel |
| Color | Black |
Dimensions
| Product Net Width | 4.56 in |
| Product Net Width | 115.9 mm |
| Product Net Height | 5.81 in |
| Product Net Height | 147.58 mm |
| Product Net Depth / Length | 6.56 in |
| Product Net Depth / Length | 166.63 mm |
| Product Net Weight | 17.5 lb |
| Product Net Weight | 7.94 kg |
| Dimension Diagram | 9AKK107991A2144 |
Installation
| Instructions and Manuals | 9AKK107991A2929 |
Why Proax for ABB 9T58K4240?
Proax is an authorized distributor of ABB 9T58K4240 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
