9T10A1021
Official DistributorBy ABB
SKU
ABB9T10A1021
MPN
1TQX233721A0102
Weight
104.782 kg
This item is ineligible for free shipping due to its size/weight.

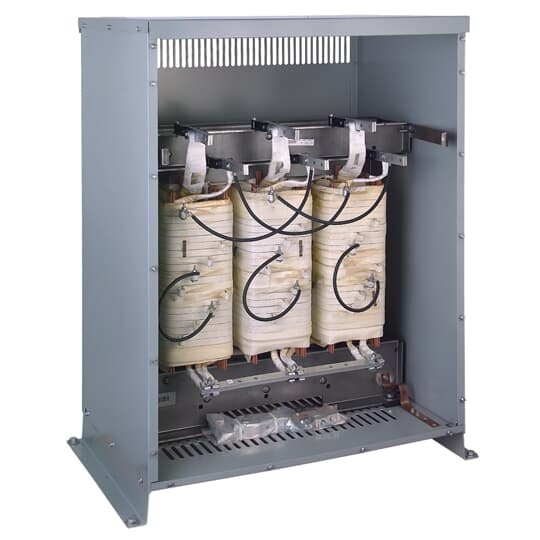

Our Type QL transformers meet DOE-2016 efficiency standards. They are available in aluminum and copper and in all three temperature rise ratings. QL Transformers utilize a UL recognized 220°C insulation system and are UL Listed.
Technical Specifications
ABB EcoSolutions
| Environmental Product Declaration - EPD | 9AKK108470A5476 |
Technical
| Number of phases | 3-phase |
| Transformer Type | General Purpose |
| Material of Conductor | Aluminum |
Design
| Housing Material | Painted Steel |
Dimensions
| Product Net Width | 21.2 in |
| Product Net Width | 538.5 mm |
| Product Net Height | 29.3 in |
| Product Net Height | 744.3 mm |
| Product Net Depth / Length | 16.9 in |
| Product Net Depth / Length | 429.3 mm |
| Product Net Weight | 231 lb |
| Product Net Weight | 104.8 kg |
| Dimension Diagram | 303B111GEUXP71A |
Installation
| Instructions and Manuals | 9AKK107991A2142 |
