9T10A1008G31
Official DistributorBy ABB
SKU
ABB9T10A1008G31
MPN
1TQX260521A0100
Weight
900.396 kg
This item is ineligible for free shipping due to its size/weight.

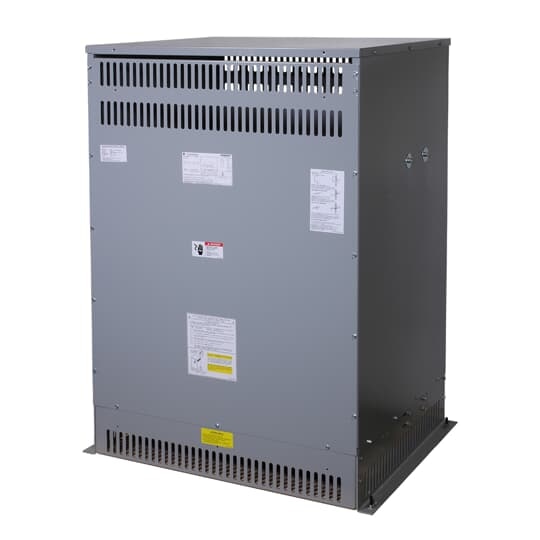

Our Type QL transformers meet DOE-2016 efficiency standards. They are available in aluminum and copper and in all three temperature rise ratings. QL Transformers utilize a UL recognized 220°C insulation system and are UL Listed.
Technical Specifications
Technical
| Number of phases | 3-phase |
| Transformer Type | General Purpose |
| Material of Conductor | Aluminum |
Design
| Housing Material | Painted Steel |
Dimensions
| Product Net Width | 41.4 in |
| Product Net Width | 1051.6 mm |
| Product Net Height | 57.1 in |
| Product Net Height | 1450.4 mm |
| Product Net Depth / Length | 33 in |
| Product Net Depth / Length | 838.2 mm |
| Product Net Weight | 1985 lb |
| Product Net Weight | 900.4 kg |
| Dimension Diagram | 303B112GEDXP78A |
Installation
| Instructions and Manuals | 9AKK107991A2143 |
