1460344
Official DistributorSKU
PHX1460344
MPN
HC-B 06-TFL-N-M1PG13.5S
Weight
0.146 kg
Series HC-B

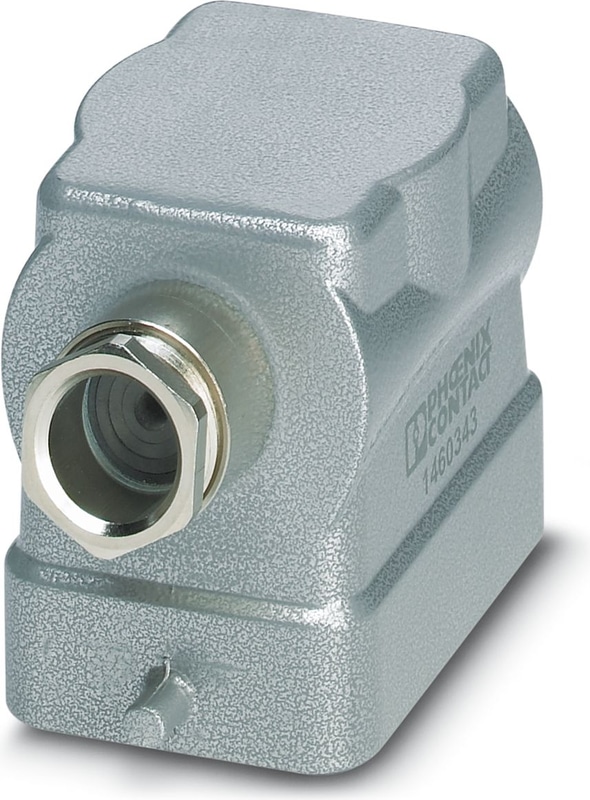

HC-B 06-TFL-N-M1PG13.5S - Housing
HEAVYCON B6 sleeve housing, for single locking latch, height: 56 mm, with 1 x Pg13.5 screw connection, lateral cable outlet
HC-B
The Phoenix Contact HC-B Series comprises heavy-duty rectangular connectors engineered for industrial applications requiring robust and reliable power and signal transmission. These connectors are designed to withstand harsh environmental conditions, ensuring secure and efficient connectivity in demanding settings.
- Variety of Sizes: The HC-B Series offers multiple sizes, including B6, B10, B16, and B24, accommodating different space and connection requirements.
- High Number of Positions: Depending on the size, these connectors provide a range of contact positions, such as 6+PE, 10+PE, 16+PE, and 24+PE, facilitating versatile wiring configurations.
- Robust Electrical Specifications: Rated for voltages up to 500 V and currents up to 16 A, the HC-B connectors are suitable for power-intensive applications.
- Durable Construction: Featuring housings made from high-quality materials, these connectors offer excellent resistance to mechanical stress and environmental factors.
- Secure Connection Technologies: The series includes various connection methods, such as screw and push-in connections, ensuring reliable and maintenance-friendly installations.
Technical Specifications
Notes
| General | For contact inserts HC-B6, BB10, DD24, M |
Product properties
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B6 |
| No. of cable outlets | 1 |
| Type of the screw connection | Pg13.5 |
| Cable outlet | lateral |
| Pg screw connection | with |
Dimensions
| Width | 43 mm |
| Height | 56 mm |
| Length | 60 mm |
| Wrench size, union nut | 20 mm |
Material specifications
| Housing Material | die-cast aluminum |
| Housing surface material | Powder-coated, gray |
Mechanical data
| Type of the screw connection | Pg13.5 |
Cable/line
| External Cable Diameter | 7.5 mm ... 12.5 mm |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1460344?
Proax is an authorized distributor of Phoenix Contact 1460344 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
