SACCEC-M12FSB-5CON-M16/0,7-900
Weight
0.076 kg
This product is Not Cancellable/Not Returnable
Series SACCEC-M

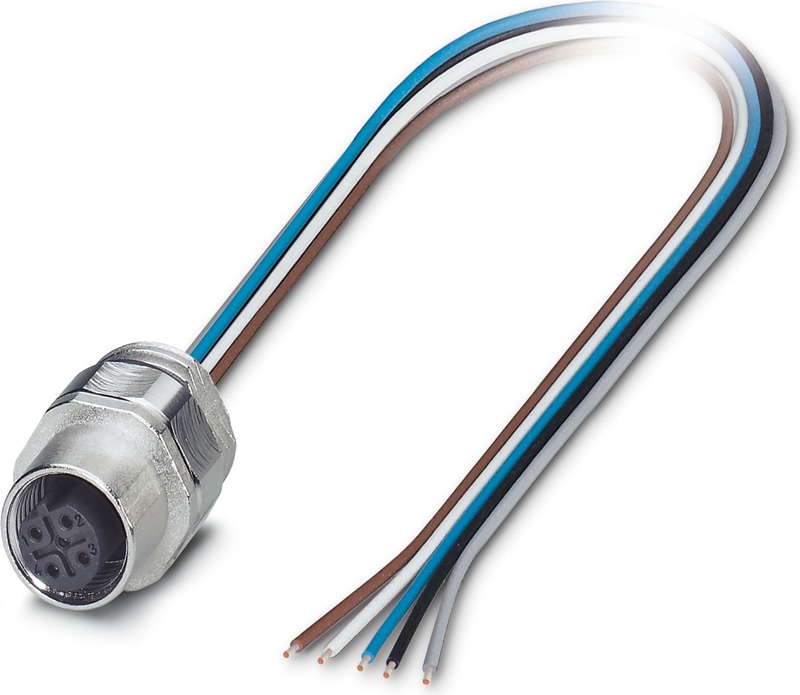

SACCEC-M12FSB-5CON-M16/0,7-900 - Device connector front mounting
Device connector front mounting, 5-position, coding: B, M16 x 1.5, Bus line, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239616
Technical Specifications
Notes
| Order information: | Lock nut is included in the scope of delivery |
Safety note
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | • The products are suitable for applications in plant, controller, and electrical device engineering. |
| Safety note | • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product |
| Safety note | • Only use tools recommended by Phoenix Contact |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Mounting
| Mounting Type | Front wall/screw mounting, can be positioned |
Product properties
| Number of Positions | 5 |
| Coding | B |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 1.5 kV AC |
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) |
Conductor connection
| Connection Method | Bus line |
Cable/line
| Cable Length | 0.7 |
INTERBUS [900]
| Cable weight | 70 kg/km |
| Number of Positions | 6 |
| Shielded | yes |
| Cable Type | INTERBUS [900] |
| Conductor structure | 3 x 2 x 0.22 mm² |
| Signal speed | 0.66 c |
| Conductor structure signal line | 32x 0.10 mm |
| AWG Signal Line | 24 |
| Conductor Cross Section | 3x 2x 0.22 mm² |
| External Cable Diameter | 8.00 mm |
| Outer sheath, material | PUR |
| External sheath, color | may green RAL 6017 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PE |
| Single wire, color | green-yellow, white-brown, gray-pink |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 3 pairs to the core |
| Insulation resistance | ≥ 5 GΩ*km |
| Coupling resistance | < 250.00 mΩ/m (at 30 MHz) |
| Loop resistance | ≤ 159.80 Ω/km |
| Wave impedance | 120 Ω ±20 % (at 64 kHz) |
| Wave impedance | 100 Ω ±15 % (with 1 MHz) |
| Cable capacity | ≤ 60 nF/km (At 800 Hz) |
| Nominal voltage, cable | 250 V (Peak value, not for high-power applications) |
| Test voltage Core/Core | 1500 Vrms |
| Test voltage Core/Shield | 1000.00 Vrms |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 15 x D |
| Smallest bending radius, fixed installation | 60 mm |
| Smallest bending radius, movable installation | 120 mm |
| Max. bending cycles | 5000000 |
| Near end crosstalk attenuation (NEXT) | ≥ 61 dB (at 772 kHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 59 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 55 dB (at 2 МHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 50 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 46 dB (at 8 МHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 44 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 41 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 40 dB (at 20 МHz) |
| Shield attenuation | ≤ 15 dB/km (at 256 kHz) |
| Shield attenuation | ≤ 24 dB/km (at 772 kHz) |
| Shield attenuation | ≤ 27 dB/km (with 1 MHz) |
| Shield attenuation | ≤ 52 dB/km (at 4 МHz) |
| Shield attenuation | ≤ 84 dB/km (at 10 MHz) |
| Shield attenuation | ≤ 112 dB/km (at 16 MHz) |
| Shield attenuation | ≤ 119 dB/km (at 20 МHz) |
| Flame resistance | according to VDE 0472, Part 4, test type B |
| Flame resistance | according to IEC 60332-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -30 °C ... 70 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 ... -85 |
Standards and Regulations
| Standards/specifications | according to IEC 61076-2-101 |
Why Proax for Phoenix Contact 1435878?
Proax is an authorized distributor of Phoenix Contact 1435878 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 200 |
