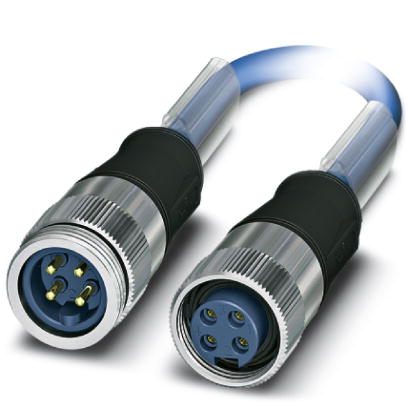

SAC-4P-MINMS/ 5,0-961/MINFSVAL - Bus system cable
Bus system cable, FOUNDATION Fieldbus (31.25 kbps), 3-position, PVC, blue RAL 5015, shielded (Plastic-coated aluminum foil with a drain wire), Plug straight 7/8"-16UNF, coding: A, on Socket straight 7/8"-16UNF, coding: A, cable length: 5 m
SAC-4P
The Phoenix Contact SAC-4P Series comprises 4-position sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These cables are engineered to provide secure and efficient connections between sensors, actuators, and control systems.
Key Features:
Connector Types: The SAC-4P Series offers cables with M12 connectors in both straight and angled configurations, providing flexibility for various installation scenarios.
Cable Materials: Cables are available with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Shielding Options: Some models feature advanced shielding technology to protect against electromagnetic interference, ensuring signal integrity in environments with high electrical noise.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Dimensions
| Length of Cable | 5 m |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (Plug / socket) |
| Degree of Protection | IP67 |
| Degree of Protection | 1 (NEMA) |
| Degree of Protection | 3 (NEMA) |
| Degree of Protection | 4 (NEMA) |
| Degree of Protection | 6P (NEMA) |
General
| Note | For applications in circuits of intrinsic safety protection type "i". Electrical values following EN 60079-14. |
| Rated current at 40°C | 5.2 A |
| Rated voltage | 300 V |
| Number of Positions | 3 |
| Insulation resistance | ≥ 10 MΩ |
| Coding | A - standard |
| Signal type/category | FOUNDATION Fieldbus, 31.25 kbps |
| Status display | No |
| Degree of pollution | 2 |
| Torque | 0.8 Nm (7/8" connectors) |
Material
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA66 |
| Material of grip body | TPU |
| Material, knurls | Stainless steel |
| Sealing material | TPU |
Pin assignment
| Position = wire color (signal) = position (optional) | 1 (Plug) | BU (DATA-) | 1 (Socket) |
| Position = wire color (signal) = position (optional) | 2 (Plug) | OG (DATA+) | 2 (Socket) |
| Position = wire color (signal) = position (optional) | 3 (Plug) | SR (shield) | 3 (Socket) |
Cable
| Cable Type | Fieldbus FOUNDATION/PROFIBUS PA, blue |
| Cable type (abbreviation) | 961 |
| Cable structure | 2xAWG18/7 + 1xAWG20/7 |
| Conductor Cross Section | 2x 0.75 mm² (Signal line) |
| Conductor Cross Section | 1x 0.5 mm² (Drain wire) |
| AWG Signal Line | 18 |
| Conductor structure signal line | 7x 0.40 mm |
| Core diameter including insulation | 2.24 mm ±0.05 mm |
| Thickness, insulation | 0.5 mm |
| Wire colors | Blue, orange |
| Twisted pairs | 2 cores to the pair |
| Overall twist | One pair with one drain wire and fillers for core |
| Shielding | Plastic-coated aluminum foil with a drain wire |
| Optical shield covering | 100 % |
| External sheath, color | blue RAL 5015 |
| Outer sheath thickness | 1 mm |
| External cable diameter D | 7.5 mm ±0.25 mm |
| Smallest bending radius, fixed installation | 75 mm |
| Cable weight | 56.552 kg/km |
| Tensile strength GRP | 260 N |
| Outer sheath, material | PVC |
| Material conductor insulation | PO (Signal line) |
| Conductor material | Tin-plated Cu litz wires |
| Conductor resistance | ≤ 19.35 Ω/km (Signal line) |
| Conductor resistance | 26 Ω/km (shield) |
| Working capacitance | 78 nF (at 1 kHz) |
| Cable capacity | 147 pF/m (at 1 kHz, core/shield) |
| Cable capacity | ≤ 3.94 pF/m (capacitance unbalance) |
| Signal speed | 0.66 c |
| Shield attenuation | 3 dB/km (at 39 kHz) |
| Cable impedance | 100 Ω ±20 % (At 31.25 kHz) |
| Inductance | 0.6233 µH (per meter) |
| Nominal voltage, cable | 300 V |
| Special Properties | UL standards PLTC-ER and ITC |
| Flame resistance | UL 1685 (CSA FT 4) |
| Flame resistance | UL 1685 (vertical tray) |
| Flame resistance | UL 1666 (riser) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Why Proax for Phoenix Contact 1434183?
Proax is an authorized distributor of Phoenix Contact 1434183 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
