1419185
Official DistributorSKU
PHX1419185
MPN
VS-V1-F-RJ45-MNNA-1-C-S-JI-S
Weight
0.097 kg
Series VS-V1

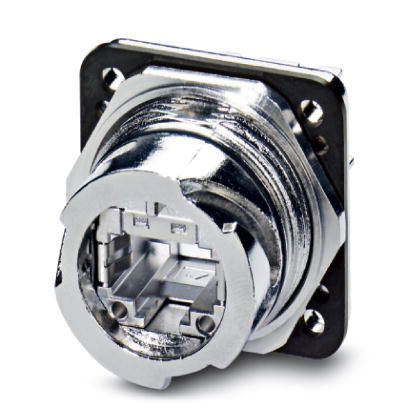

VS-V1-F-RJ45-MNNA-1-C-S-JI-S - Panel mounting frames
RJ45 mounting frame, IP67, for bayonet interlocking, metal, with contact insert for cable connection, for round mounting cutout, with seal, without mounting screws
- Round panel cutout
Technical Specifications
Mechanical characteristics
| Connection Method | Coupling |
| Number of slots | 1 |
| AWG solid min. | 26 |
| AWG solid max. | 22 |
| Weight | 94.2 g |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
Material data
| Housing Material | Zinc die-cast |
| Housing Material | Zinc die-cast |
Electrical characteristics
| Number of Positions | 8 |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) CAT5 (IEC 11801:2002) |
| Transmission Speed | 1 Gbps |
| Rated voltage (III/3) | 72 V (DC) |
| Insertion/withdrawal cycles | 750 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
VS-V1-C-RJ45-MNNA-PG9-8-I-5-S - RJ45 connector, design: RJ45, degree of protection: IP67, number of positions: 8, 1 Gbps, CAT5 (IEC 11801:2002), material: Metal, connection method: IDC fast connection, connection cross section: AWG 27- 24, cable outlet: straight, color: silver
Protective cover, IP67, plastic version, to cover the contact insert in the RJ45,LC and SC-RJ panel mounting frame
