1419182
Official DistributorSKU
PHX1419182
MPN
VS-V1-C-RJ45-MNNA-PG9-8-I-5-S
Weight
0.13 kg
This product is Not Cancellable/Not Returnable
Series VS-V1

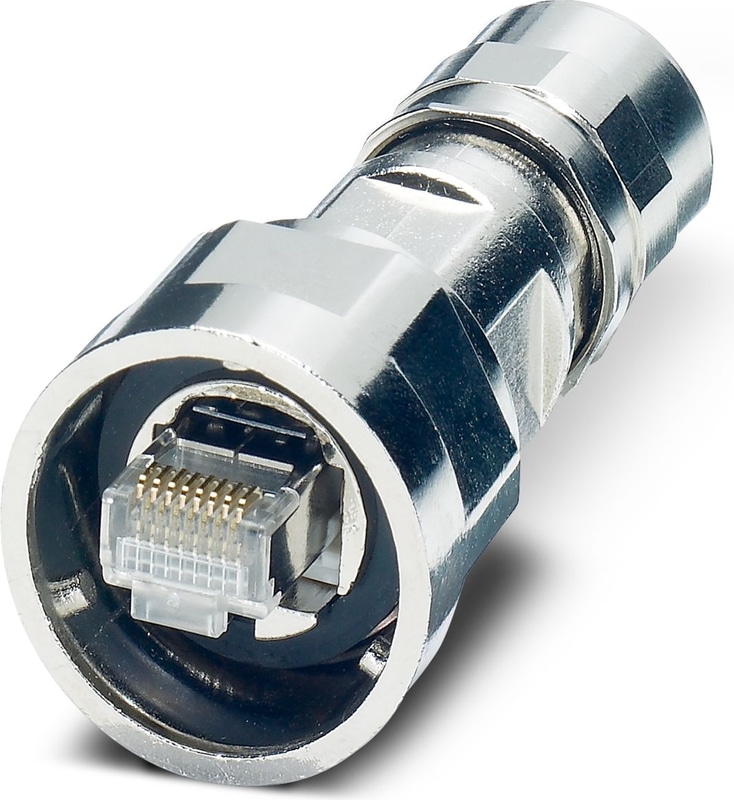

VS-V1-C-RJ45-MNNA-PG9-8-I-5-S - RJ45 connector
RJ45 connector, design: RJ45, degree of protection: IP67, number of positions: 8, 1 Gbps, CAT5 (IEC 11801:2002), material: Metal, connection method: IDC fast connection, connection cross section: AWG 27- 24, cable outlet: straight, color: silver
Technical Specifications
Product properties
| Type | RJ45 |
| Number of Positions | 8 |
| Number of slots | 1 |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/3) | 72 V (DC) |
| Rated current | 1.75 A |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 |
| Transmission Speed | 1 Gbps |
| Power transmission | PoE++ |
Connection technology
| Connection Method | IDC fast connection |
| Connection cross section AWG | 27 ... 24 (flexible) |
| Conductor Cross Section | 0.11 mm² ... 0.23 mm² |
Material specifications
| Color | silver |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Cable seal material | PA/EPDM |
Cable/line
| External Cable Diameter | 5 mm ... 10 mm |
| External Cable Diameter | 5 mm ... 10 mm |
| Wire diameter | 0.36 mm ... 0.51 mm |
| Cable cross section | 0.13 mm² |
Mechanical data
| Insertion/withdrawal cycles | 750 |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
Accessories
