Official DistributorSKU
MPN
HC-STA-B06-BWSC-ELC-AL
Weight
0.115 kg
Series HC-STA-B

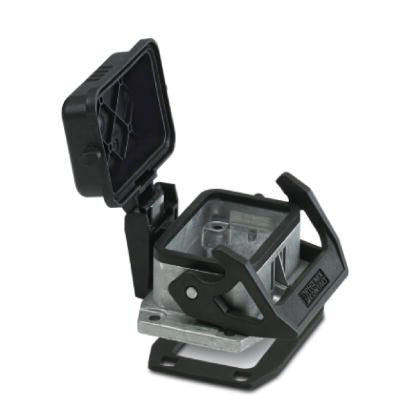

Housing - HC-STA-B06-BWSC-ELC-AL
HEAVYCON B6 panel mounting base, with single locking latch, with plastic protective cover, with flat gasket, salt-water-resistant aluminum, conductive profile gasket.
- good shielding in the event of electromagnetic interference
Technical Specifications
Dimensions
| Height | 30.5 mm |
| Width | 53 mm |
| Length | 80.5 mm |
| Length of the assembly cutout | 52 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of Protection | IP66 (with locked protective cover) |
| Degree of Protection | IP67 (when plugged in) |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B6, BB10, DD24, M |
| Size | B6 |
| Housing type | Panel mounting base |
| Color | gray aluminum |
| Locking Type | with single locking latch |
| Torque | 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |
| Screw connection | none |
| Protective cover | yes |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Seal material | NBR, conductive |
| Material lock | PA |
| Material, protective cover | PC |
| Flammability rating according to UL 94 | V0 (Interlock) |
| Flammability rating according to UL 94 | V0 (Protective cover) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact 1411319?
Proax is an authorized distributor of Phoenix Contact 1411319 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
