Official DistributorSKU
MPN
1411318
Weight
0.087 kg
Series HC-STA-B

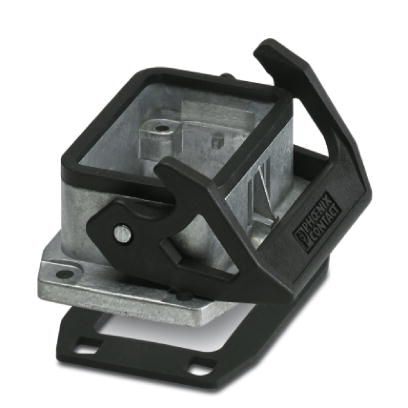

Housing - HC-STA-B06-BWS-ELC-AL
HEAVYCON B6 panel mounting base, with single locking latch, with flat gasket, salt-water-resistant aluminum, conductive profile gasket
- good shielding in the event of electromagnetic interference
Technical Specifications
Dimensions
| Height | 30.5 mm |
| Width | 53 mm |
| Length | 80.5 mm |
| Length of the assembly cutout | 52 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Degree of protection (NEMA) | 4 (UL 50e) |
| Degree of protection (NEMA) | 4X (UL 50e) |
| Degree of protection (NEMA) | 12 (UL 50e) |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B6, BB10, DD24, M |
| Size | B6 |
| Housing type | Panel mounting base |
| Color | gray aluminum |
| Locking Type | with single locking latch |
| Torque | 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |
| Screw connection | none |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Seal material | NBR, conductive |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 (Interlock) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
1411483 - Replacement flat gasket, for HEAVYCON panel mounting base, HC-STA-...AL, type B6, conductive
Why Proax for Phoenix Contact HC-STA-B06-BWS-ELC-AL?
Proax is an authorized distributor of Phoenix Contact HC-STA-B06-BWS-ELC-AL and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | HCSTAB06BWSELCAL |
| Pack Size | 1 |
