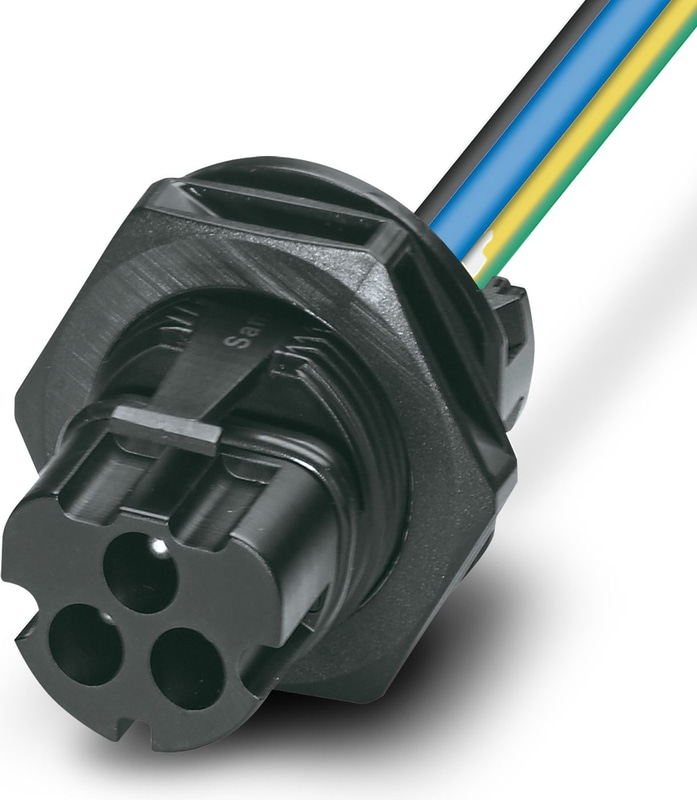

PRC 3-FT25-MC6-150 - Device connector rear mounting
Device connector rear mounting, Range of articles: PRC 35, housing material: PPE, color: black, number of positions: 3, max. conductor cross section: 6 mm2, rated voltage: 690 V AC, rated current: 35 A, Connection method: Crimp connection, Contact connection type: Pin, cable length: 150, This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary.
- Up to 75% smaller in size than industrial connectors with the same rating
- Locking mechanism can be unlocked manually or using a tool
- Ideal for indoor and outdoor use due to weatherproof materials
- Either preassembled or designed for assembly
Technical Specifications
Notes
| Order information: | This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary. |
| Note on application | For assembly notes, please refer to the packing slip |
Safety note
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector |
| Safety note | • Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product |
| Safety note | • Only use tools recommended by Phoenix Contact |
| Safety note | • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • Operate the connector only when it is fully plugged in. |
| Safety note | • Operate the connector only when it is fully plugged in and interlocked. |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the minimum bending radius of the cable. Lay the cable without twisting it. |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Product properties
| Product family | PRC 35 |
| Number of Positions | 3 |
| Connection profile | 2+PE |
| Coding | AD |
Insulation characteristics
| Protection class | II |
| Degree of pollution | 2 |
Conductor connection
| Tightening torque | 2.5 Nm ±0.1 Nm (Tightening torque nut) |
Dimensions
| Width | 34.5 mm |
| Height | 38.4 mm |
| Length | 179.5 mm |
| Hole diameter | 25.5 mm |
| Wrench size, union nut | 32 mm |
Electrical properties
| Rated voltage (III/2) | 690 V |
| Nominal voltage ATD | 690 V AC (III/2.00) in accordance with IEC 61984 |
| Nominal voltage ATD | 500 V AC (III/2.00) in accordance with IEC 61535/2 PfG 1915 |
| Nominal voltage ATD | 600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237 |
| Nominal voltage ATD | 500 V DC (III/2.00) in accordance with IEC 61535 |
| Rated surge voltage (III/2) | 8 kV |
| Rated current | 35 A (With 6 mm² conductor cross section in accordance with IEC 61984) |
| Rated current | 32 A (With 6 mm² conductor cross section in accordance with IEC 61535) |
| Rated current | 21.4 A (With 6 mm² conductor cross section and 85 °C in accordance with 2 PfG 1915) |
| Rated current | 32 A (with AWG 10, in accordance with UL 2237) |
Mechanical data
| Insertion/withdrawal cycles | 100 |
| Insertion force | 30 N ±10 N |
Material specifications
| Color | black |
| Color of the housing part | black |
| Material | PPE |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I / CTI 600 |
| Seal material | Silicon |
| Seal material | EPDM |
| Seal material | Silicon |
| Housing Material | PPE |
| Contact Material | Cu alloy |
| Contact surface material | Ag |
| Contact carrier material | PPE |
| O-ring material | Silicon |
| Material for screw connection | PPE |
Connector
| Pull-out-force | 150 N ±50 N |
Cable/line
| Cable Length | 150 mm |
| Single wire, material | PVC |
| Wire diameter incl. insulation | 4.8 mm ±0.15 mm |
| Single wire, cross section | 6 mm² |
| Single wire, color | brown, blue, green/yellow |
| Cable cross section | 6 mm² |
| Halogen-free | no |
Mounting
| Mounting Type | Rear mounting |
Ambient conditions
| Degree of protection (when plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Degree of protection (not plugged in) | IP65 (Lengthwise waterproofing) |
| Degree of Protection | IP66 / IP68 (2m / 24h) / IP69K |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | 5 °C ... 85 °C |
Standards and Regulations
| Standards/specifications | IEC 61984:2008 |
| Standards/specifications | EN 61984:2008 |
| Standards/specifications | DIN EN IEC 61535:2020 |
| Standards/specifications | IEC 61535:2019 |
| Standards/specifications | 2 PfG 1915/03.2015 |
| Standards/specifications | UL 2237 Ed.1:2021-01-08 |
| Standards/specifications | CSA C22.2 No. 182.3-16 Ed.2:2019-01 |
