1407795
Official DistributorSKU
PHX1407795
This product has been discontinued

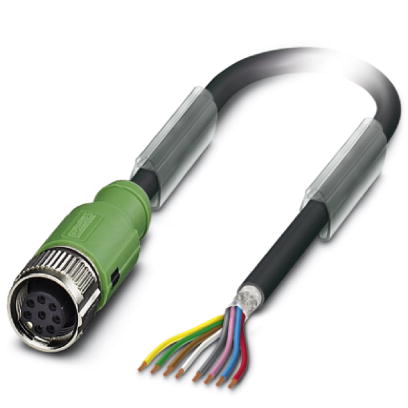

Sensor/actuator cable, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, free cable end, on Socket straight M12 SPEEDCON, A-coded, cable length: 10 m
Technical Specifications
| Length of Cable | 10 m |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Nominal Voltage | 30 V |
| Number of Positions | 8 |
| Contact Material | CuZn |
| Cable Type | PUR halogen-free black shielded |
| Conductor Cross Section | 8x 0.25 mmu00b2 (signal line) |
| AWG Signal Line | 24 |
| Bending Radius | 59 mm |
| Cable Nominal voltage | 300 V (at 20 °C) |
| Special Properties | Flexible cable conduit capable |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (cable, flexible installation) |
