1407898
Official DistributorSKU
PHX1407898

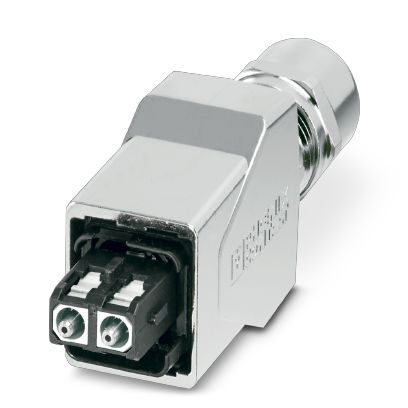

FO connectors - FOC-V14-C1ZNI-S/SJFG
Push-pull connector (version 14), die-cast zinc, with SC-RJ insert for GOF, for cable diameter of 5.5 mm ... 10 mm
- Push-pull ADVANCE connector
- Locking system to prevent inadvertent removal
- Highest ESD and EMC resistance for reliable transmission
Technical Specifications
Mechanical characteristics
| Minimum external conductor diameter | 5.5 mm |
| Maximum external conductor diameter | 10 mm |
| Cable outlet | straight |
| Locking Type | Push Pull |
| Weight | 22.22 g |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -10 °C ... 40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Material data
| Housing Material | Zinc die-cast |
| Housing surface material | Nickel-plated |
| Width | 22 mm |
| Height | 50 mm |
| Length | 80 mm |
Electrical characteristics
| Insertion/withdrawal cycles | ≥ 50 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
Why Proax for Phoenix Contact 1407898?
Proax is an authorized distributor of Phoenix Contact 1407898 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
