1402452
Official DistributorSKU
PHX1402452
MPN
VS-M8MS-IP20/93B-0,5
Weight
0.06 kg
This product is Not Cancellable/Not Returnable
Series VS-M
VS-M8MS-IP20/93B-0,5 - Network cable

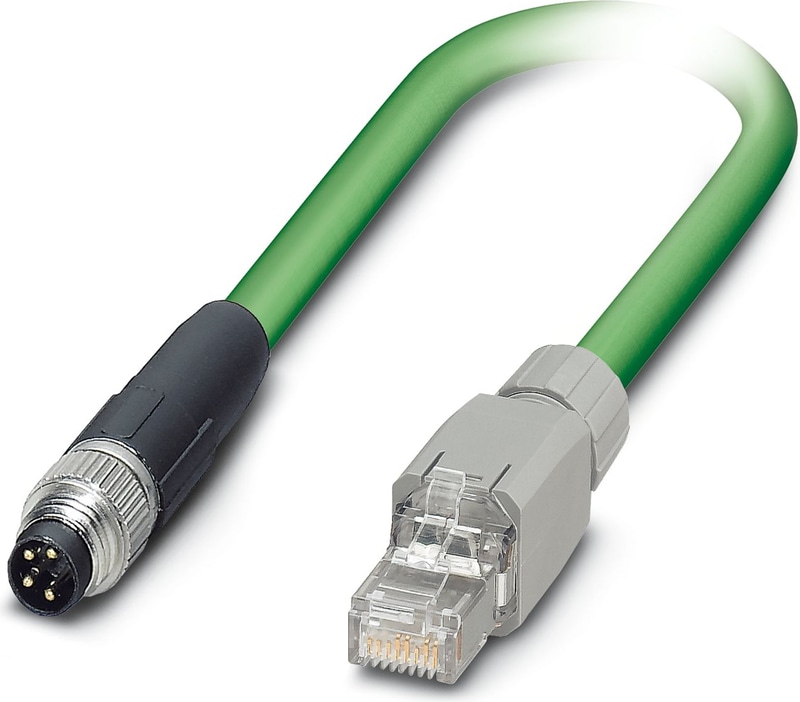

Network cable, Ethernet (100 Mbps), PROFINET (100 Mbps), EtherCAT® (100 Mbps), 4-position, PVC/PVC, green RAL 6018, shielded (Aluminum-coated foil, tinned copper braided shield), Plug straight M8, coding: A / IP67, on Plug straight RJ45 / IP20, cable length: 0.5 m
Technical Specifications
Product properties
| Application | Standard |
| Sensor Type | Ethernet |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Interfaces
| Signal type/category | Ethernet, 100 Mbps |
| Signal type/category | PROFINET, 100 Mbps |
| Signal type/category | EtherCAT®, 100 Mbps |
Signaling
| Status display | No |
Electrical properties
| Nominal voltage UN | 30 V AC |
| Nominal voltage UN | 30 V DC |
| Nominal current IN | 1 A |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 |
Material specifications
| Flammability rating according to UL 94 | HB |
Connection 1
| Type | Plug straight M8 / IP67 |
| Number of Positions | 4 (4) |
| Coding type | A (Standard) |
| Shielded | yes |
| Handle color | black |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | TPU GF (Contact carriers) |
| Material | TPU, hardly inflammable, self-extinguishing (Grip) |
| Material | CuZn (nickel-plated) (Screw connection) |
| Insertion/withdrawal cycles | ≥ 100 |
| Insulation resistance | ≥ 100 MΩ |
| Tightening torque | 0.2 Nm |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C |
Connection 2
| Type | Plug straight RJ45 / IP20 |
| Number of Positions | 4 (8) |
| Shielded | yes |
| Handle color | gray |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | PC (Contact carriers) |
| Material | PA (Housing) |
| Insertion/withdrawal cycles | ≥ 750 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -10 °C ... 60 °C |
Cable/line
| Cable Length | 0.5 m |
PROFINET PVC stranded CAT5 [93B]
| Cable weight | 67 kg/km |
| UL AWM style | 21694 |
| Number of Positions | 4 |
| Shielded | yes |
| Cable Type | PROFINET PVC stranded CAT5 [93B] |
| Conductor structure | 1x4xAWG22/7, SF/TQ |
| Signal runtime | 5.3 ns/m |
| Signal speed | 0.66 c |
| Conductor structure signal line | 7x 0.25 mm |
| AWG Signal Line | 22 |
| Conductor Cross Section | 4x 0.34 mm² |
| Wire diameter incl. insulation | 1.55 mm |
| External Cable Diameter | 6.50 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | green RAL 6018 |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PE |
| Single wire, color | white, yellow, blue, orange |
| Thickness, outer sheath | approx. 0.90 mm |
| Overall twist | Star quad |
| Optical shield covering | 85 % |
| Insulation resistance | ≥ 500 MΩ*km |
| Coupling resistance | ≤ 20.00 mΩ/m (at 10 MHz) |
| Loop resistance | ≤ 120.00 Ω/km |
| Wave impedance | 100 Ω ±15 Ω (at 100 MHz) |
| Nominal voltage, cable | 600 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000.00 V (50 Hz, 1 min.) |
| Minimum bending radius, fixed installation | 3 x D |
| Minimum bending radius, flexible installation | 7 x D |
| Smallest bending radius, fixed installation | 20 mm |
| Smallest bending radius, movable installation | 46 mm |
| Near end crosstalk attenuation (NEXT) | 80 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 76 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 70 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 65 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 63 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 60 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 55 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 50 dB (at 100 MHz) |
| Shield attenuation | 2.1 dB (with 1 MHz) |
| Shield attenuation | 4 dB (at 4 МHz) |
| Shield attenuation | 6.3 dB (at 10 MHz) |
| Shield attenuation | 8 dB (at 16 MHz) |
| Shield attenuation | 9 dB (at 20 МHz) |
| Shield attenuation | 11.4 dB (at 31.25 МHz) |
| Shield attenuation | 16.5 dB (at 62.5 МHz) |
| Shield attenuation | 21.3 dB (at 100 MHz) |
| Flame resistance | according to UL 1685 (CSA FT 4) |
| Resistance to Oil | Resistant to oil to a limited extent |
| Other resistance | UV resistant (According to UL 1581, Section 1200) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (Cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 60 °C |
Ambient conditions
| Degree of Protection | IP20 (RJ45 connector) |
| Degree of Protection | IP67 (M8 connectors) |
M8
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
