SAC-5P-MSB/ 3,0-900/FSB SCO - Sensor/actuator cable

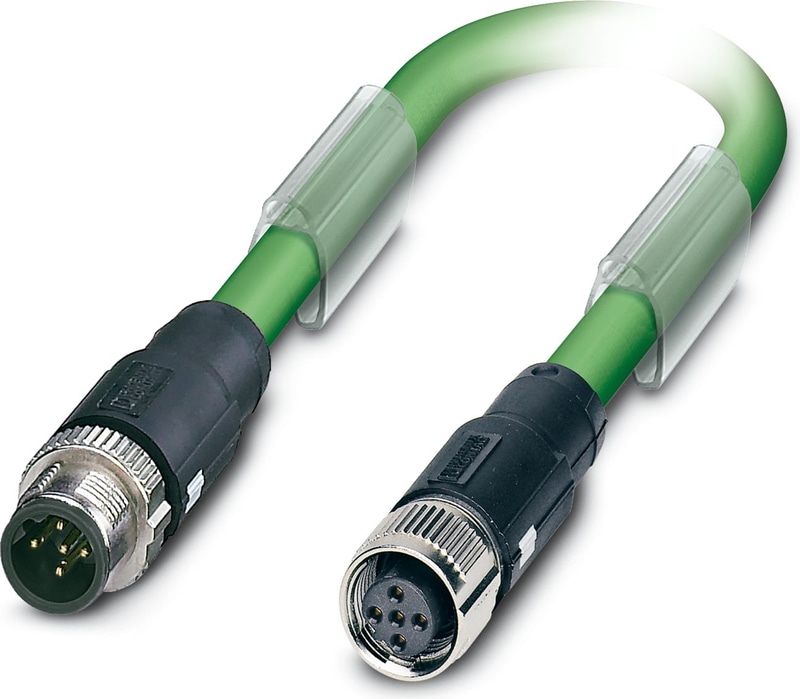

Sensor/actuator cable, 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12 SPEEDCON, coding: B, on Socket straight M12 SPEEDCON, coding: B, cable length: 3 m
SAC-5P
The Phoenix Contact SAC-5P Series comprises 5-position sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These cables are engineered to provide secure and efficient connections between sensors, actuators, and control systems.
Key Features:
Connector Types: The SAC-5P Series offers cables with M12 connectors in both straight and angled configurations, providing flexibility for various installation scenarios.
Cable Materials: Cables are available with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Shielding Options: Some models feature advanced shielding technology to protect against electromagnetic interference, ensuring signal integrity in environments with high electrical noise.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Number of Positions | 5 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | B |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Signaling
| Status display | No |
| Status display present | No |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
Connection 1
| Type | Plug straight M12 SPEEDCON |
| Number of Positions | 5 |
| Locking Type | SPEEDCON |
| Coding type | B (inverse) |
Connection 2
| Type | Socket straight M12 SPEEDCON |
| Number of Positions | 5 |
| Locking Type | SPEEDCON |
| Coding type | B |
Cable/line
| Cable Length | 3 m |
INTERBUS [900]
| Cable weight | 70 kg/km |
| Number of Positions | 6 |
| Shielded | yes |
| Cable Type | INTERBUS [900] |
| Conductor structure | 3 x 2 x 0.22 mm² |
| Signal speed | 0.66 c |
| Conductor structure signal line | 32x 0.10 mm |
| AWG Signal Line | 24 |
| Conductor Cross Section | 3x 2x 0.22 mm² |
| External Cable Diameter | 8.00 mm |
| Outer sheath, material | PUR |
| External sheath, color | may green RAL 6017 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PE |
| Single wire, color | green-yellow, white-brown, gray-pink |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 3 pairs to the core |
| Insulation resistance | ≥ 5 GΩ*km |
| Coupling resistance | < 250.00 mΩ/m (at 30 MHz) |
| Loop resistance | ≤ 159.80 Ω/km |
| Wave impedance | 120 Ω ±20 % (at 64 kHz) |
| Wave impedance | 100 Ω ±15 % (with 1 MHz) |
| Cable capacity | ≤ 60 nF/km (At 800 Hz) |
| Nominal voltage, cable | 250 V (Peak value, not for high-power applications) |
| Test voltage Core/Core | 1500 Vrms |
| Test voltage Core/Shield | 1000.00 Vrms |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 15 x D |
| Smallest bending radius, fixed installation | 60 mm |
| Smallest bending radius, movable installation | 120 mm |
| Max. bending cycles | 5000000 |
| Near end crosstalk attenuation (NEXT) | ≥ 61 dB (at 772 kHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 59 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 55 dB (at 2 МHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 50 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 46 dB (at 8 МHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 44 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 41 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | ≥ 40 dB (at 20 МHz) |
| Shield attenuation | ≤ 15 dB/km (at 256 kHz) |
| Shield attenuation | ≤ 24 dB/km (at 772 kHz) |
| Shield attenuation | ≤ 27 dB/km (with 1 MHz) |
| Shield attenuation | ≤ 52 dB/km (at 4 МHz) |
| Shield attenuation | ≤ 84 dB/km (at 10 MHz) |
| Shield attenuation | ≤ 112 dB/km (at 16 MHz) |
| Shield attenuation | ≤ 119 dB/km (at 20 МHz) |
| Flame resistance | according to VDE 0472, Part 4, test type B |
| Flame resistance | according to IEC 60332-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -30 °C ... 70 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -30 °C ... 70 °C (Cable, flexible installation) |
