Official DistributorSKU
MPN
WF 1000 120V
Weight
0.1 kg
Series WF

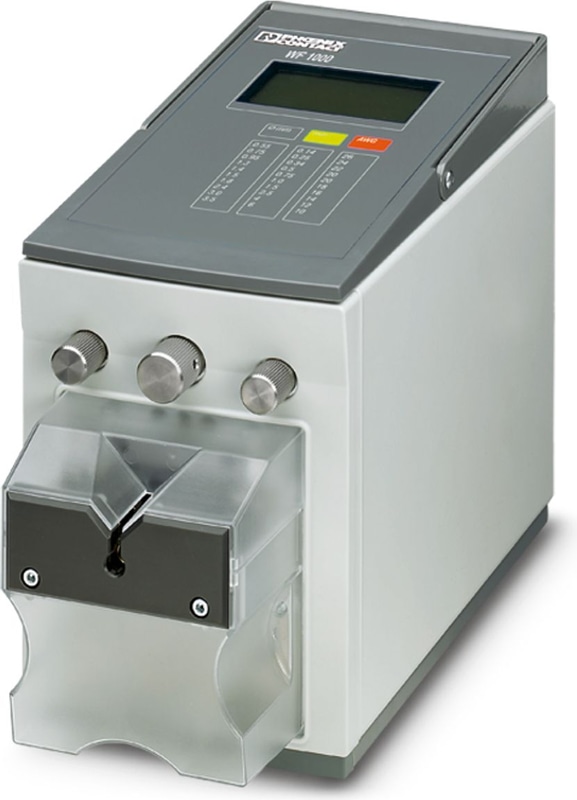

WF 1000 120V - Automatic stripping device
Automatic stripping device with integrated graphic display, for conductors and cables up to 6 mm in diameter, 120 V version
- Multi-strand cables with a diameter of up to 6 mm can also be stripped
- The stripping dimensions are set individually via knobs and are shown on the large display
- Partial stripping is supported
- The clamping force automatically adjusts itself to the required extraction force
- Compact automatic stripping device for automatically stripping conductors with a cross-section of 0.08 mm² to 6 mm²
- Pressure points on sensitive insulation are avoided
- Even special types of insulation, such as PTFE and silicone, can be stripped in addition to standard types
Technical Specifications
Product properties
| Partial stripping length | 2 mm ... 20 mm |
| Insertion length minimum | 15 mm |
| Maximum throughput | 6 |
| Min. cross section | 0.08 mm² |
| Max. cross section | 6 mm² |
Electrical properties
| Frequency Range | 60 Hz |
| Power consumption | 160 VA |
| Nominal voltage UN | 120 V |
Supply
| Supply Voltage Range | 120 V |
Conductor connection
| Cross section range, metric | 0.08 mm² ... 6 mm² |
| Cross section range AWG | 28 ... 10 |
| Stripping length | 2 mm ... 20 mm |
Dimensions
| Width | 141 mm |
| Height | 221 mm |
| Length | 363 mm |
| Diameter | 6 mm |
| Diameter, conductor entry opening | 6 mm |
External dimensions
| Outside diameter | 6 mm |
Cable/line
| External Cable Diameter | ≤ 6.00 mm |
Accessories
