1209091
Official DistributorSKU
PHX1209091
MPN
DUSPOL EXPERT
Weight
0.367 kg

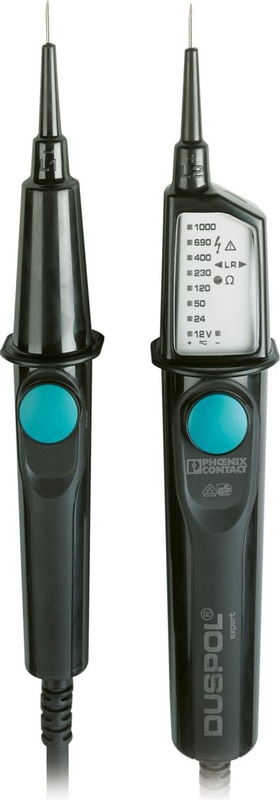

DUSPOL EXPERT - Voltage tester
Voltage tester, for DC and AC voltages from 12 V to 1000 V AC/1000 V DC, IP65
- DC and AC voltage tests in the range from 12 V to 690 V AC/750 V DC, fully functional even without batteries
- Polarity test (+/-) for DC voltage
- Single-pos. test of the phase conductor
- Indicator for the direction of rotating field of a three-phase network as long as the star point is grounded
- Measuring point lighting
- Load connection via pushbutton
- Overvoltage category CAT IV 600 V and CAT III 1000 V in accordance with IEC/EN 61243-3
- Vibration alarm for safe voltage detection
- Shock-proof, dust-proof, and splash-proof housing, IP65
- Audible and optical continuity test
Technical Specifications
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
Product properties
| Display scope | 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V, 1000 V LED diode display |
| Phase-sequence indicator | LCD (symbol "R") |
| Measuring point lighting | LED |
| Phase display | LCD (symbol "R") |
| Polarity display | LED (symbol "+/-") |
Electrical properties
| Innenwiderstand_Messkreis | 220 kΩ |
| Innenwiderstand_Lastkreis | 3.7 kΩ |
| Measuring category | CAT IV 600 V / CAT III 1000V |
| Power Supply | 2 x micro battery 1.5 V, LR03, AAA |
Input data
| Input Voltage Range AC | 12 V AC ... 1000 V AC |
| Input voltage range DC | 12 V DC ... 1000 V DC |
Dimensions
| Blade width | 0 mm |
| Length | 260 mm |
Material specifications
| Color | black |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -10 °C ... 55 °C |
Standards and Regulations
| Tests | EN/IEC 61243-3 (VDE 0682 Part 401) |
Why Proax for Phoenix Contact 1209091?
Proax is an authorized distributor of Phoenix Contact 1209091 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
