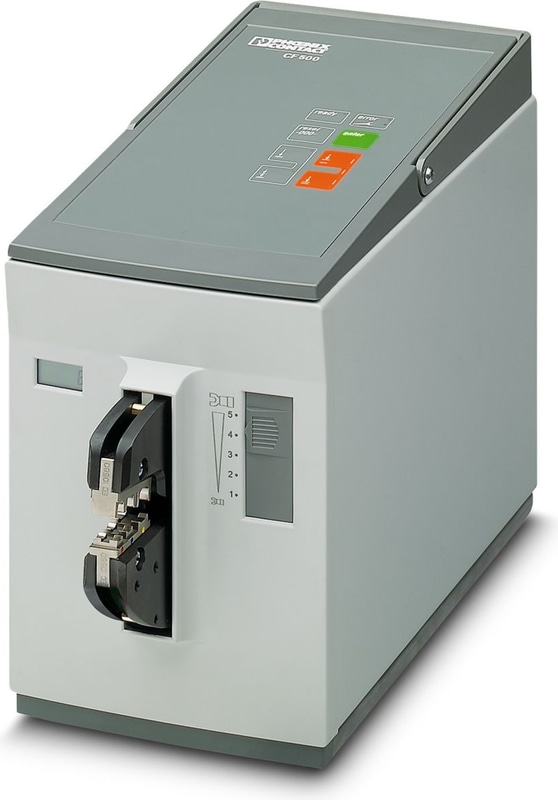

CF 500-230V - Electrical crimping tool

Universal electric crimper to take dies for a wide variety of contact elements

Insulated cable lugs up to 6 mm²
Ferrules up to 50 mm²
Turned contacts up to 10 mm²
Tube lugs up to 10 mm²
TWIN ferrules up to 2 x 10 mm²
Uninsulated cable lugs up to 16 mm²

Product properties

Compression	universal
Insertion length minimum	10 mm

Electrical properties

Frequency Range	50 Hz
Power consumption	160 W

Supply

Supply Voltage Range

230 V (50 Hz)

Conductor connection

Cross section range, metric	0.25 mm² ... 50 mm²
Cross section range AWG	24 ... 1/0

Dimensions

Width	140 mm
Height	320 mm
Length	220 mm

Material specifications

Color

gray

1212238
CF 500/DIE AI 6 - Die for CF 500 automatic crimping device, for ferrules (A... and AI...) 0.08 mm2 ... 6 mm2
1212239
CF 500/DIE AI 25 - Die for CF 500 automatic crimping device, for ferrules (A... and AI...) 10.16 mm2 and 25 mm2
1212261
CF 500/DIE AI 50 - Die for CF 500 automatic crimping device, for ferrules (A... and AI...) 35 mm2 and 50 mm2
1212262
CF 500/DIE AI-TWIN 10 - Die for CF 500 automatic crimping device, for TWIN ferrules (AI-TWIN...) 2 x 4 mm2, 2 x 6 mm2, and 2 x 10 mm2
1212263
CF 500/DIE RCI 1,5 - Die for CF 500 automatic crimping device, for insulated cable lugs (C-RCI... and C-FCI...) 0.14 mm2 ... 1.5 mm2
1212240
CF 500/DIE RCI 6 - Die for CF 500 automatic crimping device, for insulated cable lugs (C-RCI... and C-FCI...) 0.5 mm2 ... 6 mm2
1212244
CF 500/DIE RC 10 - Die for CF 500 automatic crimping device, for cable lugs (C-RC... and C-FC...) 0.5 mm2 ... 10 mm2
1212257
CF 500/DIE RC 16 - Die for CF 500 automatic crimping device, for uninsulated cable lugs (C-RC... and C-FC...) 16 mm2
1212241
CF 500/DIE SC 1,5 - Die for CF 500 automatic crimping device, for slip-on sleeves and spade connectors (C-SCF... and C-SCM...) 0.1 mm2 ... 1.5 mm2
1212242
CF 500/DIE SC 6 - Die for CF 500 automatic crimping device, for slip-on sleeves and spade connectors (C-SCF... and C-SCM...) 0.5 mm2 ... 6 mm2
1212237
CF 500/DIE TC 4 - Die for CF 500 automatic crimping device, for turned contacts with 2.5 mm and 4.0 mm pin diameter (CK 2,5 ... CK 4,0) 0.14 mm2 ... 4 mm2
1212260
CF 500/DIE TC 10 - Die for CF 500 automatic crimping device, for turned contacts with 4 mm pin diameter (CK 4.0) 6 mm2 ... 10 mm2
1212249
Crimp locator - CF 500/LOC SCF 2,8/1,5
1212248
Crimp locator - CF 500/LOC SCF 4,8/2,5
1212264
Crimp locator - CF 500/LOC SCM 6,3/2,5
1212247
Crimp locator - CF 500/LOC SCF 6,3/6
1212254
CF 500/COV AI 6 - Protective hood for CF 500 automatic crimping device, for ferrules 0.25 mm2... 6 mm2 (AI 6...)
1212266
CF 500/COV AI TWIN - Protective hood for CF 500 automatic crimping device, for TWIN ferrules 2 x 4 mm2 ... 2 x 10 mm2 (AI‑TWIN...)
1212255
CF 500/COV RCI - Protective hood for CF 500 automatic crimping device, for insulated cable lugs 0.14 mm2 ... 6 mm2 (RCI 1,5/6) and turned contacts 0.14 mm2 ... 4 mm2 (TC 4)
1212252
CF 500/COV RC 10 - Protective hood for CF 500 automatic crimping device, for uninsulated cable lugs 0.5 mm2 ... 10 mm2 (RC 10) and tubular cable lugs 4 mm2 ... 10 mm2 (RCT 10-...)
1212253
CF 500/COV RCT 4 - Protective hood for CF 500 automatic crimping device, for tubular cable lugs 0.34 mm2 ... 2.5 mm2 (RCT 2.5)
1212251
CF 500/COV SC - Protective hood for CF 500 automatic crimping device, for slip-on sleeves and spade connectors (SC 1.5... and SC 6...) 0.1 mm2 ... 6 mm2
1212250
CF 500/COV - Protective hood for CF 500 automatic crimping device, for ferrules: 10 mm2 ... 25 mm2 (AI 25, AI 50), TWIN ferrules: 6 mm2 ... 16 mm2 (AI-TWIN 16), uninsulated cable lugs: 16 mm2 (RC 16), turned contacts: 6 mm2 ... 10 mm2 (TC HC 10)
1212461
CF 500/DIE FBS - CF 500 die, for plug-in bridges (FBS... 4,5,6 and 8) for easy retrieval of individual jumper bars
1212462
CF 500/COV FBS - CF 500 protective cover, for FBS... plug-in bridges
1212245
CF 500/DIE RCT 10-1 - Die for CF 500 automatic crimping device, for tubular cable lugs 4 mm2 ... 10 mm2, 4 mm2: outer Ø 5 mm, inner Ø 3 mm, 6 mm2: outer Ø 6.5 mm, inner Ø 3.5 mm, 10 mm2: outer Ø 7 mm, inner Ø 4.5 mm
1212246
CF 500/DIE RCT 10-2 - Die for CF 500 automatic crimping device, for tubular cable lugs 4 mm2 ... 10 mm2, 4 mm2: outer Ø 5 mm, inner Ø 3 mm, 6 mm2: outer Ø 6.5 mm, inner Ø 3.8 mm, 10 mm2: outer Ø 6 mm, inner Ø 4.5 mm
1212256
CF 500/DIE RCT 10-3 - Die for CF 500 automatic crimping device, for tubular cable lugs 4 mm2 ... 10 mm2, 4 mm2: outer Ø 5 mm, inner Ø 3 mm, 6 mm2: outer Ø 6 mm, inner Ø 4 mm, 10 mm2: outer Ø 8 mm, inner Ø 5 mm
1212243
CF 500/DIE RCT 4 - Die for CF 500 automatic crimping device, for 0.1 mm2 ... 4 mm2 tubular cable lugs
1212691
CF 500/DIE RCI 6-1 - Die for CF 500 automatic crimping device, for insulated cable lugs (C-RCI... and C-FCI...) 0.5 mm2 ... 6 mm2
1212692
CF 500/DIE SR 6-2 - Die for CF 500 automatic crimping device, for solar contacts, 2.5 mm2, 4 mm2, 6 mm2
1212265
Crimp locator - CF 500/LOC SCM 6,3/6
