1203123
Official DistributorSKU
PHX1203123
MPN
ZAP 25 T
Weight
2.908 kg
Series ZAP

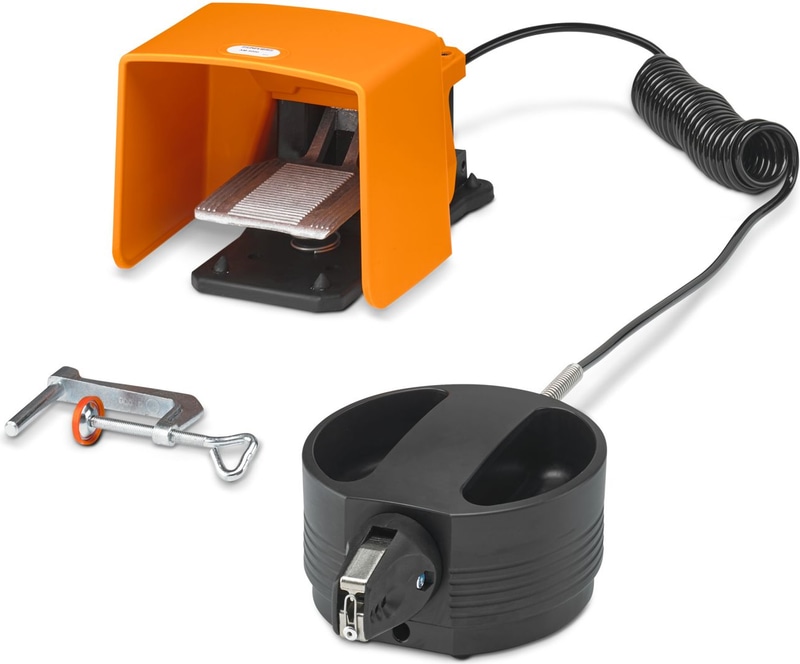

ZAP 25 T - Crimping tool, pneumatic
Pneumatic crimping pliers, as table top version, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross section 0.25 - 2.5 mm2
- These crimping pliers have been specially developed for pre-assembling conductors
- The crimping process is activated by a foot valve
- Two integrated recesses allow quick access to the ferrules
Technical Specifications
Product properties
| Compression | trapezoidal |
| Air consumption per compression | 0.2 l |
| Pressure Range | 4.00 bar ... 6.00 bar |
Electrical properties
| Frequency Range | 0 Hz |
| Power consumption | 0 W |
Supply
| Supply Voltage Range | 0 V |
Conductor connection
| Cross section range, metric | 0.25 mm² ... 2.5 mm² |
Dimensions
| Width | 140 mm |
| Height | 70 mm |
| Length | 200 mm |
Why Proax for Phoenix Contact 1203123?
Proax is an authorized distributor of Phoenix Contact 1203123 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
ZAP 25 DIE - Replacement die for ZAP 25 and ZAP 25 T crimping pliers, with spring, pivot pin, finger guard, and hexagonal nut.
ZAP 25 - Pneumatic crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross section 0.25 - 2.5 mm2
