1203110
Official DistributorSKU
PHX1203110
MPN
ZAP 25
Weight
0.762 kg
Series ZAP

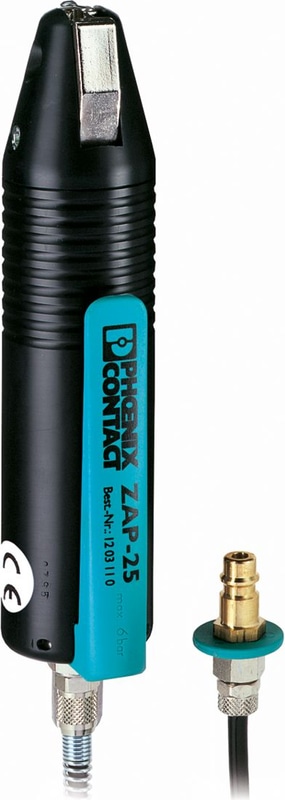

ZAP 25 - Crimping tool, pneumatic
Pneumatic crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross section 0.25 - 2.5 mm2
- These crimping pliers are pneumatic tools for ferrules with a cross section range of 0.25 mm² ... 2.5 mm²
- The ZAP 25 has a Duo-Press die, allowing both front and lateral conductor entry
Technical Specifications
Product properties
| Compression | trapezoidal |
| Air consumption per compression | 0.2 l |
| Pressure Range | 4.00 bar ... 6.00 bar |
| Crimping width | 12.00 mm |
Electrical properties
| Frequency Range | 0 Hz |
| Power consumption | 0 W |
Supply
| Supply Voltage Range | 0 V |
Conductor connection
| Cross section range, metric | 0.25 mm² ... 2.5 mm² |
Dimensions
| Width | 44 mm |
| Height | 44 mm |
| Length | 200 mm |
Why Proax for Phoenix Contact 1203110?
Proax is an authorized distributor of Phoenix Contact 1203110 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
