1014291
Official DistributorSKU
PHX1014291
MPN
US-EMLF (104X140)
Weight
0.006 kg

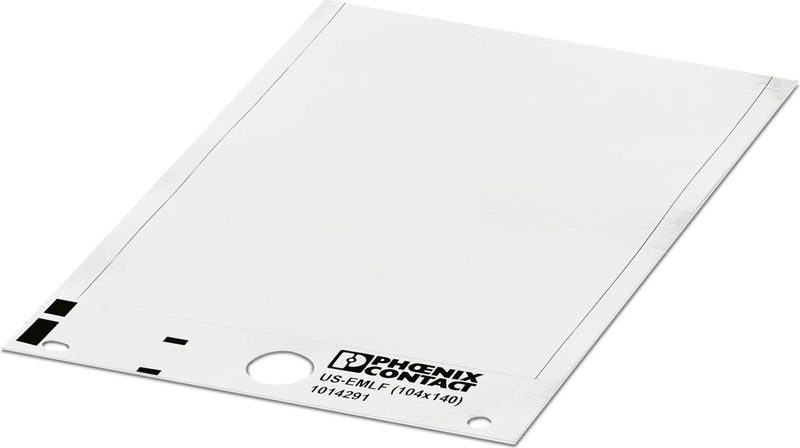

US-EMLF (104X140) - Label
Label, Card, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, Number of individual labels: 1, text field height: 140 mm, text field width: 104 mm
- Stick-on combi labels
- Suitable for indoor and outdoor use
- The markers conform to the ISO 7010 international standard
- High adhesive strength
- When used in conjunction with high-quality ink ribbons, they result in a highly resistant form of marking that is even suitable for harsh environments
- The perforated markers are easy to separate
Documents
Technical Specifications
Product properties
| Area of application | Combi labels |
| Type | Rectangle |
| Product property | low restoring force |
Marking
| Number of individual labels | 1 |
| Number of individual labels per row | 1 |
| Identification technology | Thermal transfer for sheets and cards, UV LED technology |
Mounting
| Mounting Type | adhesive |
Material specifications
| Color | white (RAL 9010) |
| Material | PVC |
| Components | Silicone-free |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
| Result | Test passed |
Scratch test for the determining scratch resistance
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
Tesafilm test
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
UV resistance
| Specification | DIN EN ISO 4892-2:2021-11 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Specification | IEC 60068-2-2:2007-07 |
| Result | Test passed |
| Duration | 96 h |
| Temperature for testing | 120 °C |
Temperature resistance
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 100 °C (121 °C) | Test passed |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Ethanol (99 %) [CAS No. 64-17-5] | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Diesel [CAS No. 68476-34-6] | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Ambient temperature (assembly) | > 10 °C |
| Recommended ambient temperature (storage/transport) | 22 °C |
| Recommended humidity (storage/transport) | 50 % ... 55 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 2 years |
Dimensions
| Width | 104 mm |
| Text field width | 104.00 mm |
| Text field height | 140.00 mm |
| Length | 140 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Accessories
THERMOMARK CARD-US-MAG1 - Magazine for the THERMOMARK CARD printer, for accommodating US cards
TMP-US-MAG1 - Magazine, For THERMOMARK CARD and THERMOMARK PRIME, for accommodating US cards, length: 0.166 m, width: 114 mm, height: 10 mm
TMP-RIBBON 110 WH 100 - Ink ribbon cartridge, for THERMOMARK PRIME for printing product groups US(2)-TM(F)..., US-TM(F)L..., US-WMT(B)..., US-EML(F)..., US-EML(S)P..., US-EMLP-HA..., US-EM(S)P..., US-EML-RS..., US-PML..., length: 60 m, roll length: 60 m, width: 110 mm, color: white
TM-RIBBON 110 WH 100 - Ink ribbon, For THERMOMARK roll printers and THERMOMARK CARD for printing material-off-the-roll product groups: EML ..., EMLP ..., EMLF ..., PML-M ..., WMTB HF-HP..., WMS-2 HF ... RD and US-material product groups: US-EML(S)P ..., US-EMLP-HA ..., US-EM(S)P ..., US-WMT ..., US-WMTB ..., US-PML-M ..., US-EMLF ..., length: 60 m, roll length: 60 m, width: 110 mm, color: white
THERMOMARK-RIBBON 110-TC - Ink ribbon, for THERMOMARK CARD for printing product groups UCT..., US..., and UM..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
THERMOMARK-RIBBON 110/50-TC - Ink ribbon, for THERMOMARK CARD for printing product groups UCT..., US..., and UM..., length: 50 m, roll length: 50 m, width: 110 mm, color: black
Why Proax for Phoenix Contact 1014291?
Proax is an authorized distributor of Phoenix Contact 1014291 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
