1013737
Official DistributorSKU
PHX1013737
MPN
P-SS-ZB 100
Weight
0.035 kg
This item is ineligible for free shipping due to its size/weight.

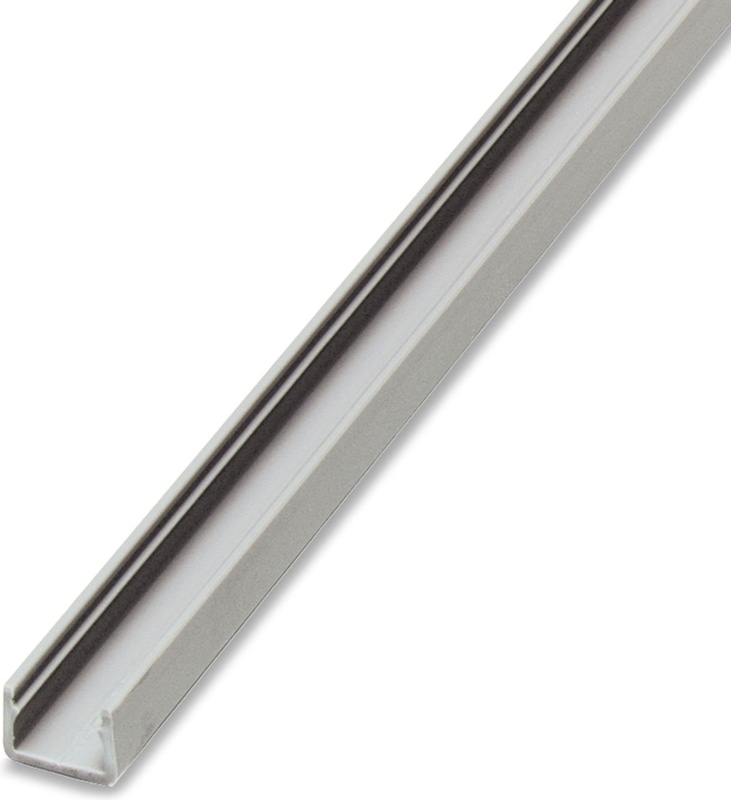

P-SS-ZB 100 - Zack marker strip carrier
Profile, self-adhesive, for accommodating SS-ZB labels, UC-EMP, UCT-EMP, length: 1 m
- Self-adhesive marker carriers, sold by the meter for cutting to custom length
- The P‑SS‑ZB 100 is ideally suited for accommodating UC‑EMP ..., UCT‑EMP ...
- Powerful adhesion and optimum grip on standard device surfaces
Technical Specifications
Dimensions
| Width | 10.9 mm |
| Length | 1000 mm |
Material specifications
| Color | gray |
| Material | PVC |
| Components | Silicone-free |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
| Specification | IEC 60068-2-2:2007-07 |
| Result | Test passed |
| Duration | 96 h |
| Temperature for testing | 80 °C |
Ambient conditions
| Ambient Temperature (Operation) | -15 °C ... 80 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 2 years |
Mounting
| Mounting Type | adhesive |
Accessories
Why Proax for Phoenix Contact 1013737?
Proax is an authorized distributor of Phoenix Contact 1013737 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
