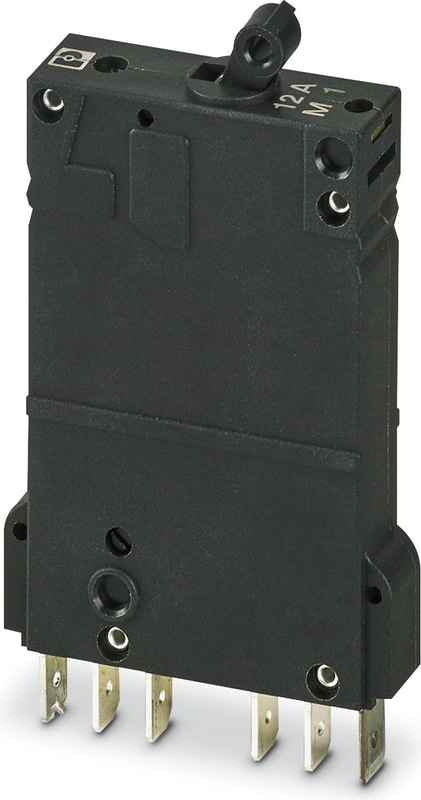

TMCP 1 M1 300 12,0A - Thermomagnetic device circuit breaker
Thermal-magnetic circuit breaker, 1-pos., normal blow, 1 N/O contact and 1 N/C contact
- Individually adjustable with protective plugs
- Switch higher starting currents with the aid of the M1 characteristic curve
- High-level system transparency with integrated remote indication contact
- Fast, replacement part-free recommissioning after an event with the reconnection options
Technical Specifications
Product properties
| Product family | TMCP |
| Type | Male |
| Number of Positions | 1 |
| No. of channels | 1 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 2 |
Electrical properties
| Fuse type | Automatic device |
General
| Rated voltage | 250 V AC |
| Rated voltage | 65 V DC |
| Rated current IN | 12 A |
| Rated surge voltage | 2.5 kV |
| Insulation resistance Riso | > 100 MΩ (500 V DC) |
| Auxiliary circuit | 240 V AC / 1 A (Low-induction) |
| Auxiliary circuit | 65 V AC / 1 A (Low-induction) |
| Tripping method | TM (thermomagnetic) |
| Device resistance | 0.02 Ω |
| Rated short-circuit switching capacity Icn | 800 A |
| Rated short-circuit switching capacity Icn | 2500 A (32 V DC) |
| Short-circuit switching capacity | 5000 A (UL 1077: 277 V AC) |
| Short-circuit switching capacity | 2000 A (UL 1077: 65 V DC) |
| Dielectric strength | 3000 V AC (Actuation area) |
| Dielectric strength | 1500 V AC (Main to auxiliary circuit) |
| Dielectric strength | 1000 V AC (Auxiliary circuit 11 - 12 to 23 - 24) |
| Switching cycles, max. | 10000 (At 1 x In, inductive) |
| Fuse | M1 (normal blow) |
Connection data
| Connection Method | pluggable |
| Connection Method | pluggable |
Dimensions
| Width | 12.5 mm |
| Height | 50 mm |
| Depth | 78.5 mm |
| Complete module width | 38 mm |
| Complete module height | 115 mm |
| Complete module depth | 121 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-2 |
| Insulating material group | II |
| Insulating material | PA66 |
Mechanical data
| Open side panel | No |
Ambient conditions
| Degree of Protection | IP30 (Actuation area) |
| Degree of Protection | IP00 (Connection area) |
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
| Humidity test | 240 h, 95 % RH, 40 °C |
Standards and Regulations
| Standards/specifications | EN 60934 |
| Standards/specifications | UL 1077 |
Mounting
| Mounting Type | on base element |
