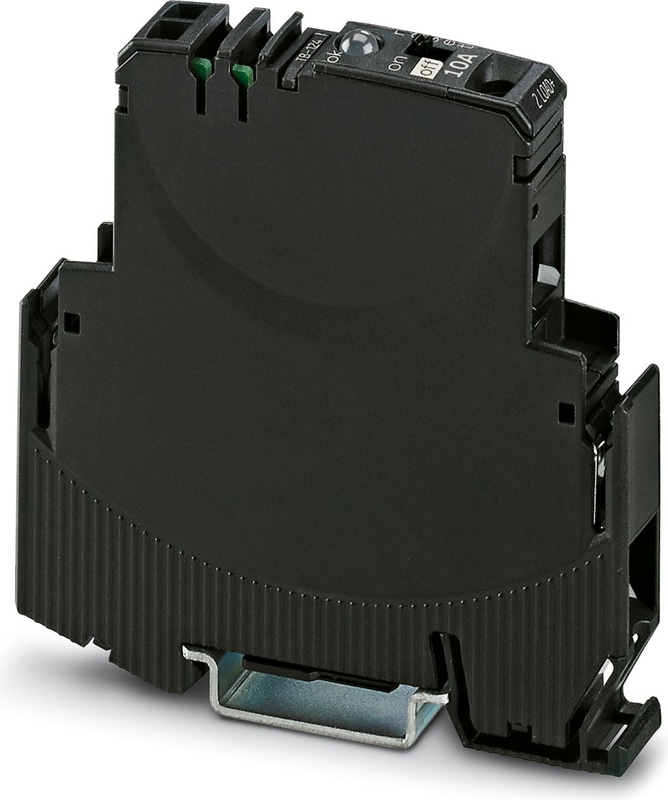

EC-E4 10A - Electronic circuit breaker

Electronic circuit breaker, signal contact: 1 N/C contact, nominal current: 10 A

  • Error-free short-circuit detection even across long cable paths with the electronics characteristic curve
  • Active current limitation to improve the capacity of the upstream power supply
  • Increased system transparency with integrated floating remote indication contact (N/O)
Technical Specifications

Notes

GeneralWhen mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor).Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC).Parallel connection of multiple circuit breakers is not permitted.

Product properties

Product familyEC-E
TypeDIN rail module, one-piece
Number of Positions1
No. of channels1

Insulation characteristics

Degree of pollution2

Electrical properties

Fuse typeAutomatic device
Switching capacity ICNActive current limitation
Fuseelectronic

General

Operating Voltage24 V DC
Operating Voltage18 V DC ... 32 V DC
Nominal current IN10 A
Rated surge voltage0.5 kV
Tripping methodE (electronic)
Required backup fusenot required, integrated failsafe element
Dielectric strengthmax. 32 V DC (Load circuit)
Switch offTyp. 1.5 x IN
Active current limitationactive
Fuseelectronic
Closed-circuit current range I0typ. 25 mA ±5 mA (When switched on)
MTBF (IEC 61709, SN 29500)7430000 h (at 25 °C with 80 % load)
MTBF (IEC 61709, SN 29500)6590000 h (at 40 °C with 80 % load)
Voltage drop150 mV (at IN)

Load circuit

Max. capacitive load20000 µF

Auxiliary contact

Contact connection typefloating signal contact
Minimum operating voltage Umin DC10 V DC
Maximum operating voltage Umax DC30 V DC
Minimum operating current Imin10 mA
Max. operating current Imax0.5 A

Indicator/remote signaling

Connection nameAuxiliary contact
Switching functionN/C contact

Connection data

Nominal cross section16.00 mm²

Line+ / LOAD+ /0V

Screw threadM4
Tightening torque... 1.2 Nm
Stripping length10 mm
Conductor cross section rigid0.5 mm² ... 16 mm²
Cross section AWG20 ... 6 (converted acc. to IEC)
Conductor cross section flexible0.5 mm² ... 16 mm²
Conductor cross section, flexible [AWG]20 ... 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.5 mm² ... 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.5 mm² ... 10 mm²
2 conductors with same cross section, solid0.5 mm² ... 4 mm²
2 conductors with the same cross-section AWG rigid20 ... 12 (converted acc. to IEC)
2 conductors with same cross section, flexible0.5 mm² ... 4 mm²
2 conductors with the same cross-section AWG flexible20 ... 12 (converted acc. to IEC)
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 6 mm²
Nominal cross section16 mm²

Auxiliary contact

Screw threadM3
Tightening torque... 0.5 Nm
Stripping length8 mm
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 2.5 mm²

Line+/LOAD+/0V

Connection MethodScrew connection
Screw threadM4
Tightening torque1.2 Nm
Stripping length10 mm
Conductor cross section flexible0.5 mm² ... 16 mm²
Conductor cross section rigid0.5 mm² ... 16 mm²
Conductor cross section AWG20 ... 6
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 10 mm²
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 10 mm²

Auxiliary contact

Connection MethodScrew connection
Screw threadM3
Tightening torque0.5 Nm
Stripping length8 mm
Conductor cross section AWG24 ... 14
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²

Dimensions

Width12.5 mm
Height83 mm
Height NS 35/1590.5 mm
Height NS 35/7,583 mm
Depth80 mm

Material specifications

Colorblack (RAL 9005)
Flammability rating according to UL 94V0

Ambient conditions

Degree of ProtectionIP20 (Housing)
Ambient Temperature (Operation)0 °C ... 50 °C (non-condensing)
Ambient temperature (storage/transport)-20 °C ... 70 °C
Humidity test96 h, 95 % RH, 40 °C

Standards and Regulations

Standards/specificationsUL 508
Standards/specificationsCSA 22.2
NoteNo. 14
Standards/specificationsUL 2367
Standards/specificationsCSA 22.2
NoteNo. 142
Standards/specificationsCSA 22.2
NoteNo. 213
Standards/specificationsUL 1604

Mounting

Mounting TypeDIN rail: 35 mm
Accessories
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1205053
    1205053
    Screwdriver - SZS 0,6X3,5
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0819233
    0819233
    Marker for terminal blocks - UC-TMF 12
  • Phoenix Contact0809735
    0809735
    Zack Marker strip, flat - ZBF 12:UNBEDRUCKT
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0829214
    0829214
    Marker for terminal blocks - UCT-TMF 12
  • Phoenix Contact2966692
    2966692
    FBST 500-PLC BU - Continuous plug-in bridge, length: 500 mm, color: blue
  • Phoenix Contact2966786
    2966786
    FBST 500-PLC RD - Continuous plug-in bridge, length: 500 mm, color: red
  • Phoenix Contact0901028
    0901028
    FBST 500 TMC-N GY - Continuous plug-in bridge, mounting type: Plug-in mounting
