Official DistributorSKU
MPN
US-WMTB (44X15) RD
Weight
0.014 kg

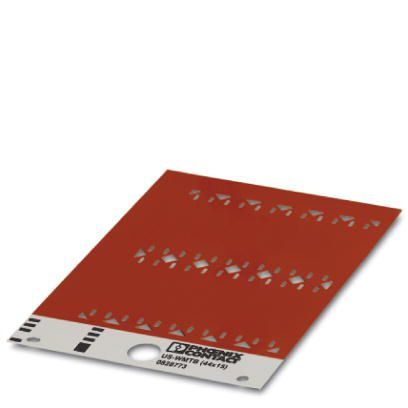

US-WMTB (44X15) RD - Cable marker
- The markers, which are supplied as uniform cards, can be labeled quickly, easily, and cost-effectively using the THERMOMARK CARD
- The US-WMTB... UniSheet labeling range includes markers that can be secured using standard cable binders
- The perforated marking strips are easy to separate and can be easily fitted
- The cards provide space for including function texts
Technical Specifications
Dimensions
| Length (b) | 60 mm |
| Width (a) | 15 mm |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 80 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | red |
| Type | Card form |
| Components | Silicone-free |
| Material | PVC |
| Material | PVC |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 12 |
| Number of individual labels per row | 6 |
| Marking mounting type | Assembly with cable binders |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Accessories
THERMOMARK CARD-US-MAG1 - Magazine for the THERMOMARK CARD printer, for accommodating US cards
TM-RIBBON 110 WH 100 - Ink ribbon, For THERMOMARK roll printers and THERMOMARK CARD for printing material-off-the-roll product groups: EML ..., EMLP ..., EMLF ..., PML-M ..., WMTB HF-HP..., WMS-2 HF ... RD and US-material product groups: US-EML(S)P ..., US-EMLP-HA ..., US-EM(S)P ..., US-WMT ..., US-WMTB ..., US-PML-M ..., US-EMLF ..., length: 60 m, roll length: 60 m, width: 110 mm, color: white
TMP-US-MAG1 - Magazine, For THERMOMARK CARD and THERMOMARK PRIME, for accommodating US cards, length: 0.166 m, width: 114 mm, height: 10 mm
Why Proax for Phoenix Contact 0829334?
Proax is an authorized distributor of Phoenix Contact 0829334 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
