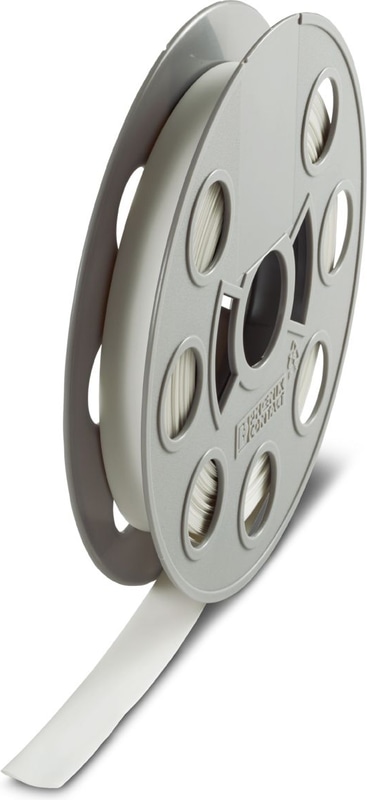

The figure shows version
0821920
Official DistributorSKU
PHX0821920
MPN
WMS 12,5 (EX20)R
Weight
0.447 kg
Series WMS
WMS 12,5 (EX20)R - Shrink sleeve
Technical Specifications
Marking
| Identification technology | Thermal transfer for rolls |
Dimensions
| Width | 20 mm |
| Length | 20 m |
Material specifications
| Color | white |
| Material | Polyolefine |
| Base element material | polyolefine |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 135 °C |
| RoHS Compliant | yes |
| Components | halogen-free |
Cable/line
| External Cable Diameter | 4 mm ... 12.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -55 °C ... 125 °C |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | slide-on |
Why Proax for Phoenix Contact 0821920?
Proax is an authorized distributor of Phoenix Contact 0821920 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
Shrink sleeve, Roll, yellow, unlabeled, can be labeled with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2, unperforated, mounting type: slide-on, cable diameter range: 6.4 ... 19.1 mm, Number of individual labels: 1, roll length: 80 m, text field height: 30 mm, text field width: 80000 mm
