0800343
Official DistributorSKU
PHX0800343
MPN
EMLS (19X6)R SR
Weight
0.154 kg

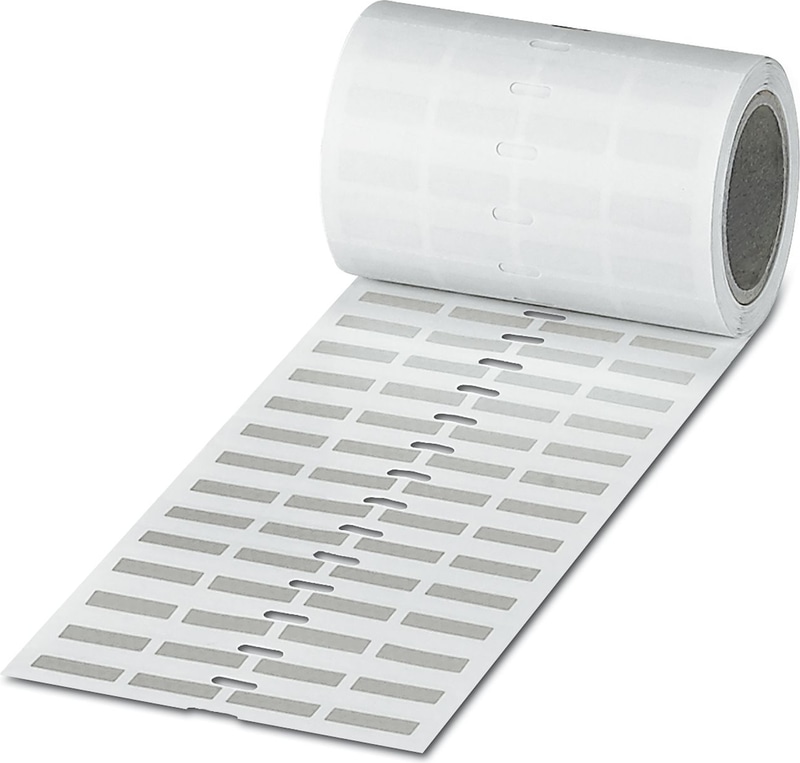

EMLS (19X6)R SR - Safety label with special adhesive
- The EMLS is a tamper-proof label that can be used as a rating plate or a sealing label
- When detaching, a part of the metallized layer separates. It leaves a triangular pattern on the label and substrate. The safety function is reliable up to 80°C
- When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences
- Labeling service: Phoenix Contact can custom-label all EMLS ... markers according to your requirements
- The EMLS ... materials are UL-listed
Technical Specifications
Product properties
| Product property | tamper-proof |
Marking
| Number of individual labels | 2500 |
| Number of individual labels per row | 4 |
| Identification technology | Thermal transfer for rolls |
Mounting
| Mounting Type | adhesive |
Material specifications
| Color | silver |
| Material | Polyester |
| Components | free from silicone and halogen |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
| Result | Test passed |
Scratch test for the determining scratch resistance
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
Tesafilm test
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Temperature resistance
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 125 °C (150 °C) | Test passed |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Ethanol (99 %) [CAS No. 64-17-5] | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Ethanol (99 %) [CAS No. 64-17-5] | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 150 °C (Functionality of the “triangle symbol” up to approx. +80°C ) |
| Ambient temperature (assembly) | > 5 °C |
| Recommended ambient temperature (storage/transport) | 10 °C ... 25 °C |
| Recommended humidity (storage/transport) | 35 % ... 65 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 12 months (see packaging date) |
Dimensions
| Width | 19 mm |
| Length | 6.3 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Accessories
THERMOMARK-RIBBON 110 - Ink ribbon, for roll printers for printing the product groups TML..., WML..., WML HF..., WML-FLAG..., EML..., EML-ESD..., EML-RM..., EML-HA..., EMLS..., EMLC..., EMLP... and PMM..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
