0424039
Official DistributorSKU
PHX0424039
MPN
AKG 35 BK
Weight
0.02 kg
This product is Not Cancellable/Not Returnable
Series AKG

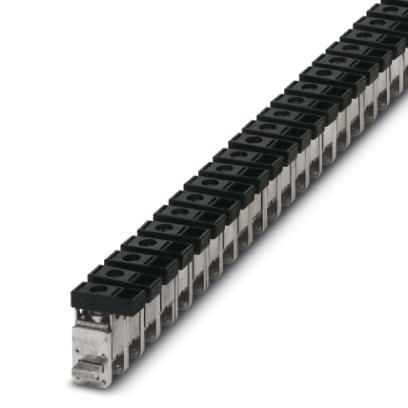

AKG 35 BK - Connection terminal block
Connection terminal block, nom. voltage: 300 V, nominal current: 125 A, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting: Neutral busbar, color: black
Documents
Technical Specifications
Product properties
| Number of Connections | 1 |
| Number of rows | 1 |
Electrical properties
| Maximum Load Current | 125 A (with 35 mm² conductor cross section) |
| Maximum power dissipation for nominal condition | 4.06 W |
| Nominal current IN | 125 A |
| Current carrying capacity of the neutral busbar | 140 A |
Connection data
| Nominal cross section | 35 mm² |
| Maximum Load Current | 125 A (with 35 mm² conductor cross section) |
Level 1 above 1 below 1
| Screw thread | M6 |
| Tightening torque | 3.2 ... 3.7 Nm |
| Stripping length | 16 mm |
| Connection in acc. with standard | IEC / EN |
| Conductor cross section rigid | 2.5 mm² ... 35 mm² |
| Cross section AWG | 12 ... 2 (converted acc. to IEC) |
| Conductor cross section flexible | 2.5 mm² ... 35 mm² |
| Conductor cross section, flexible [AWG] | 12 ... 2 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 2.5 mm² ... 35 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 2.5 mm² ... 35 mm² |
| 2 conductors with same cross section, solid | 1.5 mm² ... 16 mm² |
| 2 conductors with same cross section, flexible | 1.5 mm² ... 16 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 1.5 mm² ... 16 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 10 mm² |
| Nominal Current | 125 A |
| Maximum Load Current | 125 A (with 35 mm² conductor cross section) |
| Nominal Voltage | 300 V |
| Nominal cross section | 35 mm² |
Dimensions
| Width | 14.3 mm |
| Height | 27.3 mm |
| Depth | 40 mm |
| Length | 27.3 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PA |
| Static insulating material application in cold | -40 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and Regulations
| Connection in acc. with standard | IEC / EN |
Mounting
| Mounting Type | Neutral busbar |
Accessories
Why Proax for Phoenix Contact 0424039?
Proax is an authorized distributor of Phoenix Contact 0424039 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
