Official DistributorSKU
MPN
AKG 35 GNYE
Weight
0.044 kg
Series AKG

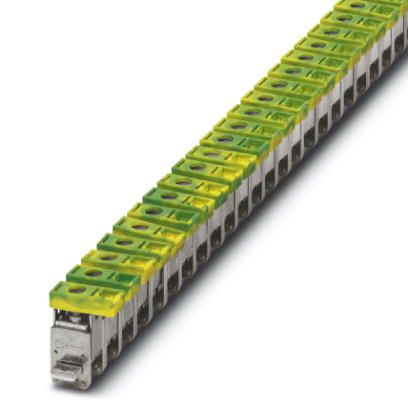

AKG 35 GNYE - Connection terminal block
Connection terminal block, nom. voltage: 300 V, nominal current: 125 A, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting: Neutral busbar, color: green-yellow
Technical Specifications
General
| Color | green-yellow |
| Insulating material | PA |
| Nominal cross section | 35 mm² |
| Flammability rating according to UL 94 | V2 |
| Maximum Load Current | 125 A (with 35 mm² conductor cross section) |
| Maximum power dissipation for nominal condition | 4.06 W |
| Connection in acc. with standard | IEC / EN |
| Nominal current IN | 125 A |
| Maximum Load Current | 125 A (with 35 mm² conductor cross section) |
| Nominal voltage UN | 300 V |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Static insulating material application in cold | -40 °C |
Dimensions
| Length | 27 mm |
| Width | 14.3 mm |
Connection data
| Conductor cross section solid min. | 2.5 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 2.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section AWG min. | 14 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum | 1.5 mm² |
| Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum | 16 mm² |
| Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum | 1.5 mm² |
| Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum | 10 mm² |
| Connection Method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M6 |
| Tightening torque, min | 3.2 Nm |
| Tightening torque max | 3.7 Nm |
Standards and Regulations
| Connection in acc. with standard | IEC / EN |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact 0424026?
Proax is an authorized distributor of Phoenix Contact 0424026 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
