LS35M52B11
Official DistributorBy ABB
SKU
ABBLS35M52B11
MPN
1SBV013752R1211
Weight
0.203 kg

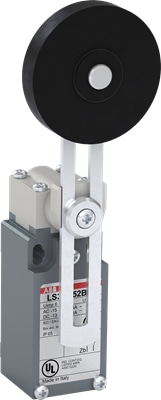

LS35M52B11 is a 30 mm wide, standard Limit Switch made of zinc alloy material (Zamak), with 2 mounting holes at the top, 1 1/2'' NPT cable entry on the bottom, adjustable rubber roller lever (Ø50 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts
Documents
Technical Specifications
Dimensions
| Product Net Width | 50 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 52 mm |
| Product Net Weight | 0.203 kg |
Technical
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous |
| Actuator Type | adjustable rubber roller lever (Ø50 mm) |
| B10d Value | Operations 30 Millions |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP66 |
| Housing Material | Metal |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-13) 3600 cycles per hour |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 0 cycle |
| Mounting Type | 30 mm (EN 50047) |
| Number and Type of Bottom Cable Glands | 1 x 1/2'' NPT - Bottom |
| Pilot Duty UL/CSA | A600 |
| Pilot Duty UL/CSA | Q600 |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| Rated Operational Current AC-15 (Ie) | (400 V) NC 4 |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (130 V) 5.5 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 3 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.6 A |
| Rated Operational Current DC-13 (Ie) | (125 V) 0.55 A |
| Rated Operational Current DC-13 (Ie) | (250 V) 0.4 A |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
Why Proax for ABB LS35M52B11?
Proax is an authorized distributor of ABB LS35M52B11 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
