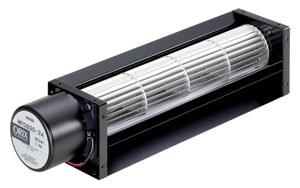

11.81 in. (300 mm) Cross Flow Fan
Cross Flow fans employ a specifically designed blade to create parallel air movement that reaches even distant objects in a wide, uniform pattern. These fans provide right-angle airflow and rectangular shape, allowing for installation in corners and space savings in applications such as circuit board cooling and air curtains.- Right-mounted motor
Technical Specifications
| Fan Type | Cross Flow |
| Frame Size | 3.54 in |
| Impeller Length | 11.81 in. |
| Motor Mount | Right |
| Power Supply | 24 VDC |
| Current | 1.0 A |
| Speed (r/min) | 2100 |
| Max. Air Flow | 184 CFM |
| Max. Static Pressure | 0.333 inH2O |
| Noise Level | 60 db (A) |
| RoHS Compliant | Yes |
| Insulation resistance | 10 MΩ or more when 250 VDC is applied between the windings and the frame under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 500 V at 50Hz applied between the windings and the frame for 1 minute under normal ambient temperature and humidity. |
| Temperature Rise | 27ºF (15ºC) or less measured by the thermometer method after the temperature of the motor case has stabilized after continuous operation under normal ambient temperature and humidity. |
| Insulation Class | Class E (248ºF [120ºC]) |
| Overheat Protection | Built-in Overheat Protection Circuit |
| Ambient temperature range | 14ºF ~ 140ºF (-10ºC ~ 60ºC) |
| Ambient Humidity | 85% or less (noncondensing) |
Why Proax for Oriental Motor MFD930B-24?
Proax is the authorized distributor of Oriental Motor MFD930B-24. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MFD930B24 |
| Pack Size | 1 |
