SKU

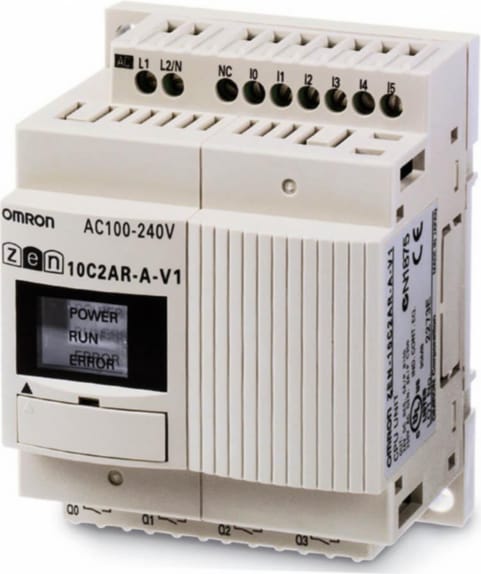

Programmable relay, 100-240 VAC supply, 6x 100-240 VAC inputs, 4x relay outputs 5 A
Documents
ZEN-10C Programmable Relay Units
Flexible automation
With the choice of 4 different 10 I/O CPU units we fulfill all needed functionality to do all kind of control automation. Three of them (C1/C2/C4) are expandable up-to 34 I/O. The C3 has fixed 10 I/O. All DC models have analogue input and a high-speed counter input up to 150Hz. The C4 model is equipped with communication.
- DC input/supply units have analogue input + high speed counter
- The ZEN-10C4 has RS-485 communication
- Expansion available with relay output or transistor output
- ZEN-Kits the best choice to start!
Technical Specifications
| Supply Voltage | 100 to 240 VAC |
| AC Inputs | 6, 100 to 240 VAC |
| Relay Outputs | 4 |
| Max. expansion | 34 |
| Display | No display, LED indicators |
| Real-time clock, calendar | No |
Why Proax for Omron ZEN-10C2AR-A-V2?
Proax is an authorized distributor of Omron ZEN-10C2AR-A-V2. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | ZEN10C2ARAV2 |
| Pack Size | 1 |
