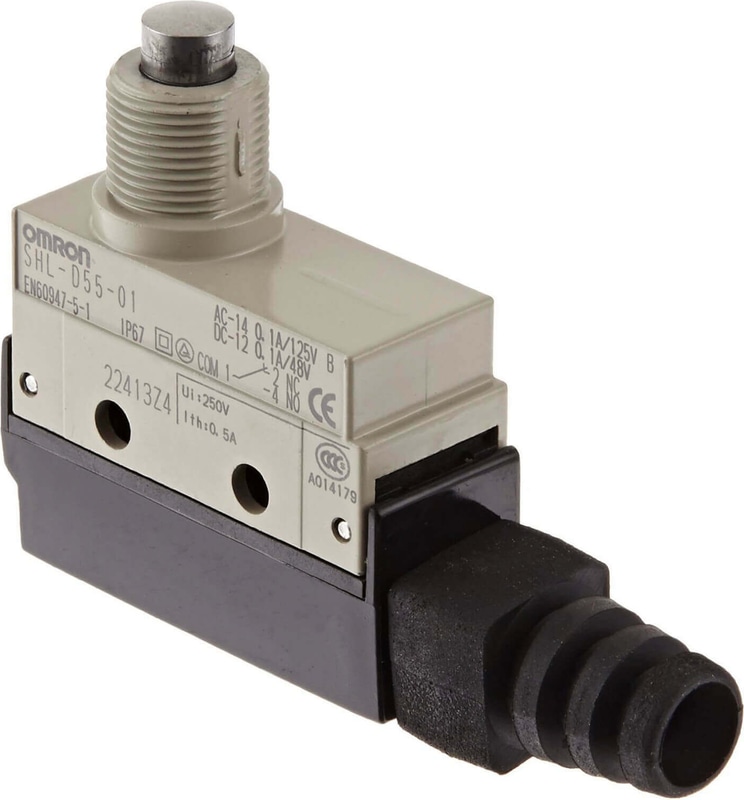

SHL Series Subminiature Enclosed Switch
A subminiature enclosed limit switch with tough sealing capabilities
The SHL family is the most compact enclosed switch with a 16.5 mm mounting hole pattern.
- 16.5 mm mounting hole pattern
- Incorporates a switch with a durable coil spring in a tough, high precision case
- Compact and uses a single basic switch for applications where strength is required
- Models for microloads and models with operation indicators added to series
- Terminal protective cover can be switched to wire cable from either the left or right
- Sealing characteristics that meet IEC IP67 degree of protection
Technical Specifications
| Rated Load | 10 A at 250 VAC |
| Actuator Type | Short Plunger |
| Switch Type | SPDT |
| Terminal Connection | Screw terminal |
| Electrical Operations Minimum | 10,000,000 operations |
| Mechanical operations minimums | 500,000 operations |
Why Proax for Omron SHL-D55?
Proax is an authorized distributor of Omron SHL-D55. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | SHLD55 |
| Pack Size | 1 |
