Official DistributorBy Omron
SKU
Weight
1.103 kg

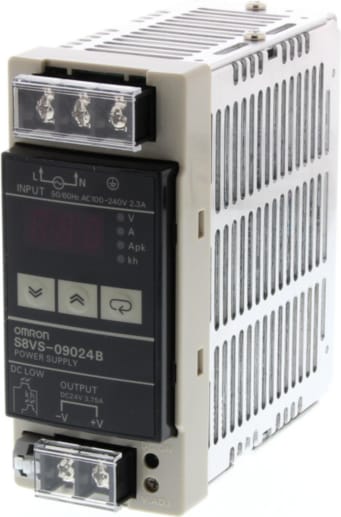

Power supply, 90 W, 100 to 240 VAC input, 24 VDC 3.75A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point
Documents
S8VS Switch Mode Power Supply
A DIN rail mount power supply with a smart display
The S8VS-A/B series are AC to DC Power supplies with a display of output voltage, output current, and peak hold current. The A type S8VS has a function to show the maintenance forecast time in operational years. This will contribute to the equipment maintence and allow for replacement before the end of product life. The B type has a function of total run time monitor to allow the user to properly schedule equipment maintenance.
- Operating temperature range (-10 to +60ºC)
- The 3 digit, 7 segment display
- The alarm output(Transistor:PNP, NPN)
- The screwless terminal type is available
- cULus, EN, RoHS compliant
- UL Class 2 output( 60W and 90W)
- Conforms to SEMI F47-0706 (200-VAC input)
- 5 year warranty
Technical Specifications
| Supply Voltage Range | 100 to 240 VAC |
| Output Power | 90 W |
| Output voltage DC | 24 V |
| Output Current | 3.75 A |
| Enclosure Type | Enclosed |
| Mounting | DIN Rail |
| Under-Voltage Alarm | No |
| Overvoltage Protection | No |
| Overload Protection | No |
| Diagnostic Display | Runtime display |
| Preventive Maintenance Alarm Output | No |
| Cooling Type | Natural (gravity) |
| Standards | UL, UR, cUL, cUR,VDE, |
| Series Operation | No |
| Parallel Operation | Yes |
Why Proax for Omron S8VS-09024B?
Proax is an authorized distributor of Omron S8VS-09024B. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | S8VS09024B |
| Pack Size | 1 |
