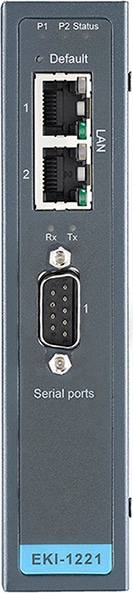

EKI-1221I-CE
Official DistributorBy Advantech
SKU
ADVEKI1221ICE
The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses.
Features
- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Integration of Modbus TCP and Modbus RTU/ASCII networks
- Supports up to 921.6 kbps, and any baud rate setting
- support up to 16 connections on each serial port under Modbus Client mode and 32 sessions under Modbus Server mode.
- Software selectable RS-232/422/485 communication
- Mounts on DIN-rail and Wall mount
- Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
- Built-in 15 KV ESD protection for all serial signals
- Automatic RS-485 data flow control
Documents
Technical Specifications
Certification
| EMC | CE, FCC |
| EMI | EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 |
| Freefall | IEC 60068-2-32 |
| Safety | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
Environment
| Humidity (Operating Range) | 5~95% RH |
| Temperature (Operating Range) | -40 ~ 75°C (-40 ~ 167°F) |
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
Ethernet Communication
| Ethernet Standard | IEEE 802.3 , 802.3ab , 802.3u |
| RJ-45 Port Connector Type | RJ-45 |
| RJ-45 Port Number | 2 |
| RJ-45 Transmission Speed | 10/100 Mbps |
Mechanism
| Dimensions (W x H x D) | 36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.) |
| Enclosure (Metal) | Metal with solid mounting hardware |
| IP Rating | IP30 |
| Mounting (DIN-rail) | Yes |
| Mounting (Wall) | Yes |
| Weight | 0.48 kg |
Power
| Power consumption | 3.2W |
| Power Operating Current | 0.7A @ 24 V |
| Power Input (DC) | 12 ~ 48 VDC, redundant dual inputs |
| Redundant Dual Inputs | Yes |
Protection
| Port to Port Isolation | - |
| Reverse Polarity | Present |
Protocol Support
| Modbus TCP | Yes |
| Modbus RTU | Yes |
| Modbus ASCII | Yes |
| Ethernet | Yes |
Serial Communication
| RS-232 | Yes |
| RS-422 | Yes |
| RS-485 | Yes |
| Serial Port Connector Type | DB9 male |
| Serial Port Number | 1 |
Software
| Baud Rate | 50 ~ 921.6 Kbps |
| Configuration | Windows utility, Web Browser |
| Driver | Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
| Operation Mode | Modbus RTU Client/Server, Modbus ASCII Client/Server |
Warranty
| Warranty Period | 5 years |
