Technical Specifications
Dimensions
| Product Net Weight | 290 kg |
Additional Information
| Rated voltage (UR) | 40,5 kV |
| Rated Impulse Withstand Voltage (Uimp) | 185 kV |
| Power Frequency Withstand Voltage | 95 kV |
| Rated Frequency (f) | 50/60 Hz |
| Rated Current (In) | 1250 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 3 s 25 kA |
| Rated Short-Circuit Capacity | 25 kA |
| Rated Short-Circuit Capacity | DC Component 25 % |
| Rated Short-Circuit Making Capacity (Icm) | 63 kA |
| Rated Cable-Charging Breaking Current | 50 A |
| Operating Sequence | O-0,3S-CO-15S-CO |
| Suitable for Product Class | M2 |
| Ambient Temperature | -5 … 40 °C |

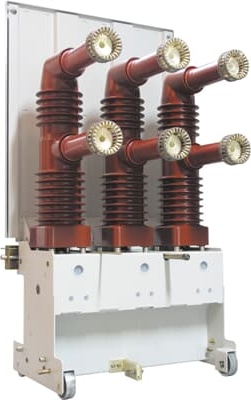

| Product Main Type | VD4 |
| Distance Between Phases | 280 mm |
Why Proax for ABB 1VCF337536R0344?
Proax is an authorized distributor of ABB 1VCF337536R0344 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
