LY

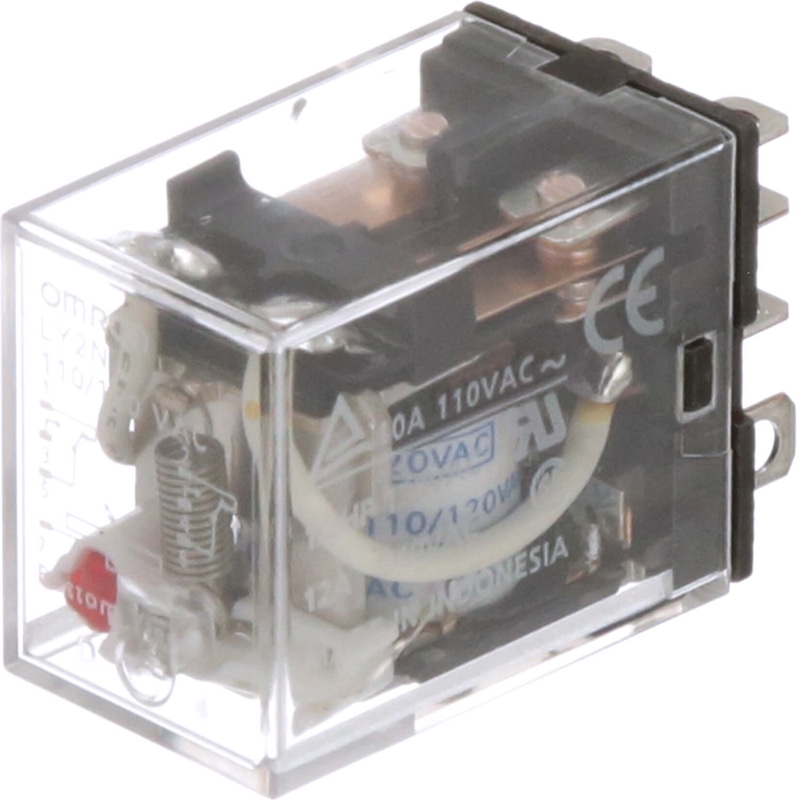

A miniature power relay
The LY series is equipped with arc barrier and built-in diode. LY comes in single-, double-, three- and four-pole models. The available mounting types are DIN-rail by socket, PCB & flange mounting.
- SPDT, DPDT, 3PDT and 4PDT contact types
- DIN-rail by socket, PCB and flange mounting types available
- 10A rated load
Technical Specifications
| Contact Arrangement | DPDT |
| Rated load (resistive) | 10 A @ 110 VAC, 10 A @ 24 VDC |
| Rated load (inductive) | 7.5 A @ 110 VAC, 5 A @ 24 VDC |
| Max. switching voltage | 250 VAC, 125 VDC |
| Max. switching current | 10 A |
| Max. switching power(resistive) | 1,100 VA, 240 W |
| Max. switching power (inductive) | 825 VA, 120 W |
| Minimum Load | 100 mA @ 5 VDC |
| Coil Voltage | 110/120 VAC |
| Power consumption | Approx. 0.53 W |
| Terminal | Plug-in |
| Indicator | LED |
| Operating Temperature | -25 to 40°C |
| RoHS Compliant | Yes |
Why Proax for Omron LY2N-AC110/120?
Proax is an authorized distributor of Omron LY2N-AC110/120. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | LY2NAC110120 |
| Pack Size | 1 |
