Official DistributorBy Omron
SKU
This product has been discontinued

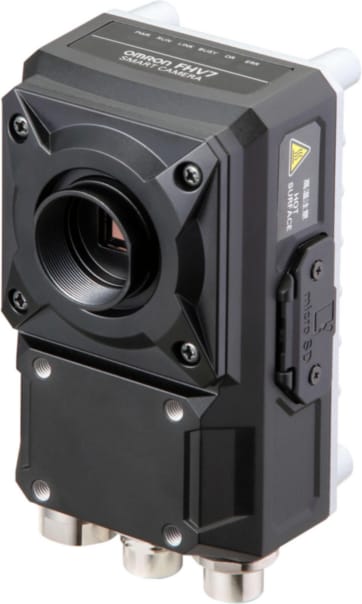

FH Vision Smart Camera, high performance, color type, 6.3 Mpix resolution, 2.4 µm pixel size, 1/1.8" chip size, rolling shutter, C-mount, 24 VDC, IP40
FHV7 Smart Camera - The Single Camera FH Vision System
Omron FHV7 cameras features the world's first multi-color light and high-res image sensors. It brings the power of a vision system to a smart camera.
Omron's FHV7 is one the most advanced smart cameras in the market. Some of the main challenges selecting a smart camera, is making sure you have something flexible and modular enough to your requirements but it doesn't compromise inspection speed. It provides a broad variety of sensors, optics, and lighting with high processing speeds and in a compact footprint while using the powerful FH inspection software. It innovates by combining our FH vision system robustness to a single camera unit, added with auto-focus and the first multi-color light in the market. Selecting the FHV7 will give you the most advanced capabilities from a smart camera and cover the majority of your inspection needs.
Typical applications include
- Automotive parts inspection
- High speed food & beverage or consumer product goods product inspections
- Electronics PCB and higher level assembly inspection
- Pharmaceutical products and packaging
- General manufacturing
Features:
- Broad range of CMOS vision sensors including 0.3 MP, 1.6MP, 3.2MP, 5.0MP, 6.3MP (pending), and 12.0MP (pending)
- Auto-focus lens available in 6mm, 9mm, 12mm, 16mm, and 25mm focal lengths
- C mount version with broad range of available lens
- White, Red, IR, and unique Multi-color lighting options
- High speed dual core processing
- Broad range of accessories including IP67 protective covers
- Powerful vision software that builds off of the proven FH series of image processing and inspection features
- Easy integration into Sysmac Studio
- Ethernet TCP/IP, EtherNet/IP and PROFINET connectivity
Benefits:
- Performs high-resolution inspections without compromising speed capabilities
- Ability to use FHV7 series in a variety of applications via wide range of sensors, lens, and lighting while using a single inspection software program
- Provides reliable inspection even when both high speed plus high image resolution is required
- Multi-color lighting allows for single lighting system to be used in high product mix environments, excelling in flexible manufacturing lines
- Rugged design intended for harsh factory environments such as high vibration and where exposed to washdown conditions (with IP 67 cover option)
- High speed image compression and storage allows for 100% image retention, enabling complete traceability
Technical Specifications
| Product Category | Smart Camera |
| Product group | FHV |
| Sensor Color | Color |
| Resolution Group | Above 5 MP |
| Sensor Resolution | 6.3 MP |
| Shutter Type | Rolling |
| Lens Type/Mount | C Mount with option for auto-focus accessory |
| Focus Distance | Need to select Lens |
| Lens Focal Length | Need to select Lens |
| Field of View/Optics | Need to select Lens |
| Lighting | Option for built-in module or external |
| Lighting Color | Need to select Light |
| Software or License | FHV Software + Sysmac Studio |
| IP Rating | IP67 (when using Lens Cover or Built-in Light) |
| Power Supply | 24 VDC |
| Possible Interfaces | I/O, RS232, Ethernet, EtherCAT* |
