0803811
Official DistributorSKU
PHX0803811
MPN
US-EML (15X9)
Weight
0.006 kg
This product is Not Cancellable/Not Returnable

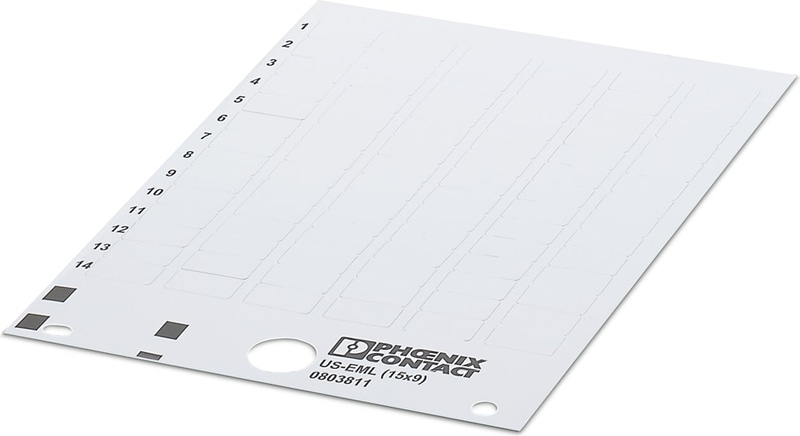

US-EML (15X9) - Label
- The markers, which are supplied in uniform sheets, can be marked quickly, easily, and inexpensively
- The US-EML ... UniSheet marking ranges provide markers for identification of equipment in controller, system, and control cabinet building
- The pre-punched labels are easy to separate and can be easily attached
- The sheets provide space for including function descriptions in the project fields
- When used in conjunction with high-quality ink ribbons, they result in a highly resistant form of labeling that is suitable for harsh environments
- A wide range of marker sizes and colors are available for custom designs
Technical Specifications
Marking
| Number of individual labels | 84 |
| Number of individual labels per row | 6 |
| Identification technology | Thermal transfer for sheets and cards, UV LED technology |
Mounting
| Mounting Type | adhesive |
Material specifications
| Color | white |
| Material | Polyester |
| Components | free from silicone and halogen |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 150 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Dimensions
| Width | 15 mm |
| Length | 9 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Accessories
