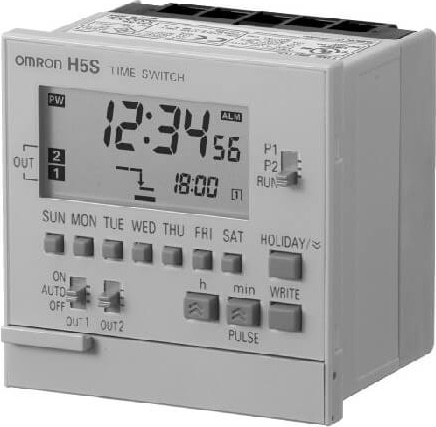

Series H5S Digital Time Switch
Digital Time Switch, Weekly, Flush mounting, 2 circuits, 100 to 240 VAC
Documents
H5S Digital Time Switch
Weekly & Yearly Timer with LCD Display
Easily achieve energy savings by controlling lighting, HVAC systems, and production equipment.
- Test mode allows for easy program checking
- Independent Day keys convenient for setting daily on and off times
- Daylight Savings Time Adjustment eliminates manually changing timer the day clocks are advanced by one hour
- Holiday Setting Function ideal for turning OFF output on holidays and non-operating days
- Memory protection retains last known data a minimum of 5 years in the OFF state
- Choice of automatic or manual operation of H5S following a power failure
- Field adjustable ON/OFF, cycle, and pulse output
- Utilize timer function in 4 different zones with space saving 72 x 72mm DIN H5S-YB4 Models
Technical Specifications
| Display | 4 digit LCD Display |
| Setting Method | Pushbutton |
| Time Ranges | 24 h x 7 days |
| Number of Operating Modes | 40 steps |
| Output Type | SPST- NO (2) 15 A at 250 VAC |
| Supply Voltage | 100 to 240 VAC/24 VDC |
| Connection Type | Screw Terminal |
| Dimensions H x W x D mm | 72 x 72 x 62.7 |
Why Proax for Omron H5S-WB2?
Proax is an authorized distributor of Omron H5S-WB2. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | H5SWB2 |
| Pack Size | 1 |
