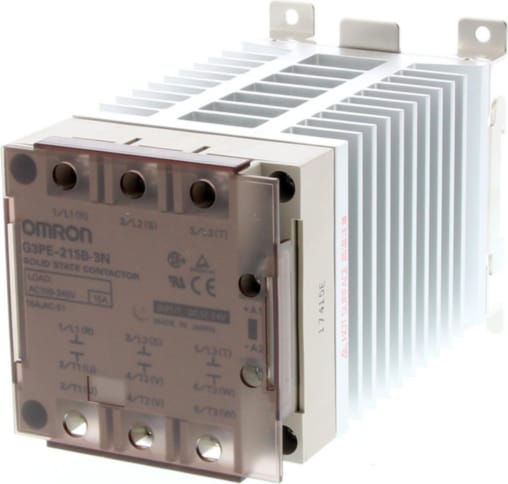

G3PE Solid State Relays for Heaters
Omron’s G3PE Compact Industrial SSR with outstanding surge endurance
The G3PE features an original surge-pass circuit that gives outstanding surge endurance and protects the semiconductor device against voltages in excess of 30kV.
- Single and three phase, 15-45 A output current
- 100-240VAC and 200-480 VAC output voltages
- Models available without zero cross
- Improved surge dielectric strength for output circuits
- Terminal cover with finger protection
- Mount to DIN track or with screws
Technical Specifications
| Input voltage range | 4 VDC - 30 VDC |
| Max Operating Input Voltage | 26.4 - 32 VDC |
| Input Impedance Range | 4.5 mA max. - 10 mA max. |
| Max Rated Load Voltage | 120 - 240 VAC |
| Max Applicable Load Voltage | 132 - 264 VAC |
| Max Load Current | AC: 0.6 A - AC: 15 A |
| Inrush Current | 150 A (60 Hz, 1 cycle) |
| Zero Cross | Yes |
| Operation Indicator | Yes |
Why Proax for Omron G3PE-215B-2N DC12-24?
Proax is an authorized distributor of Omron G3PE-215B-2N DC12-24. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | G3PE215B2NDC1224 |
| Pack Size | 1 |
