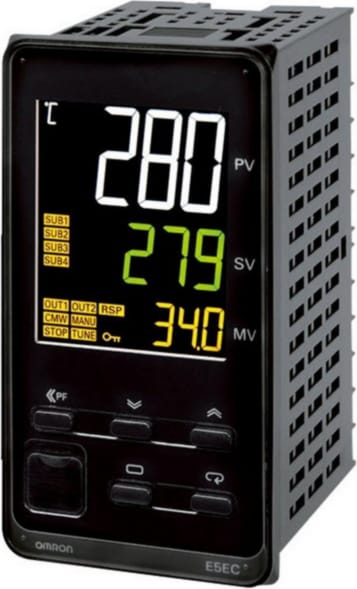

E5EC
Compact, User-friendly, with a High quality LCD Display
The E5EC series temperature controller offers precise control performance, easy set-up, and exceptional visibility. The fast sampling period of 50ms assures accurate and responsive control. Performance is further enhanced by Omron's 2-PID control algorithm. The controllers also support simple on-off control for less demanding applications.
- 1/8 DIN Panel Size
- High contrast white PV display
- High-speed sampling at 50ms
- Available auxiliary outputs, event inputs, a transfer output, and a remote SP input
- Short body with a depth of 60mm
- The front panel is rated IP66
- Set up the controller without the need for a power supply
- Easy connections to a PLC with programless communications
- Temperature controllers can be linked to each other via component communications
- Available RS-485 Communication
- Available heater burnout alarm
Technical Specifications
| Size | 1/8 DIN (48x96 mm) |
| Input Type | Thermocouple, RTD, Linear |
| Main Control Output | Voltage output (for driving SSR) |
| Control Function | Heat & cool |
| Supply Voltage | 100 - 240 VAC |
| Control Method | ON/OFF-control, 2-PID control with auto-tuning |
| Output | 4 alarm, Alarm output relay |
| Temperature Range | > 700°C |
| IP Rating | IP66 |
| Display | Triple line |
| Alarms | 4 Relays |
| Input Sampling Period | 50 ms |
| Ramp/Soak Cycle | 1 Simple Pattern |
Why Proax for Omron E5EC-QX4A5M-000?
Proax is an authorized distributor of Omron E5EC-QX4A5M-000. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E5ECQX4A5M000 |
| Pack Size | 1 |
