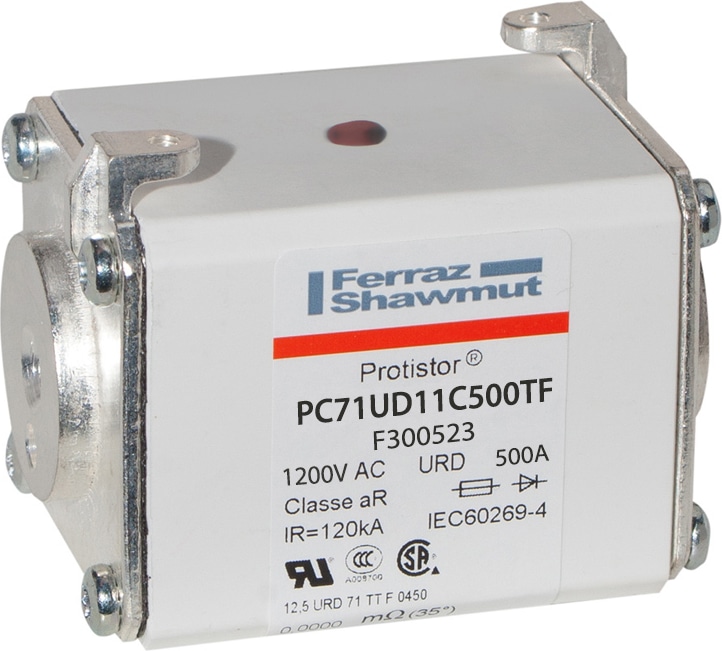

Protistor® size 71 aR, 750 to 1250VAC (IEC) / 1300VAC (UL)
These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Features
- Multiple body sizes and terminals or blades combination
- aR Class according to IEC 60269-4 and VDE 636-23
- Very low I²t for improved semiconductor protection
- Ultra fast acting
- Current limiting
- Superior cycling capability
Applications
- Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.
| Ampere Rating | 500 A |
| Ac - Dc - Ac Dc | AC |
| Rated Voltage Ac Ul | 1200 V |
| Rated Voltage Ac Iec | 1100 V |
| Product Height | 56.5 mm |
| Product Length | 74 mm |
| Product Width | 51 mm |
| Product Weight | 0.515 kg |
| Fuse Construction Size | 71 |
| Indication System | 1 |
| Indication System Type | Striker |
| Speed Characteristic | aR |
| Mounting | Bolted |
| Connection Terminal Type | Flush ends |
| Connection Terminal Material | Silver-Plated Brass |
| Body Insulating Material | Ceramic |
